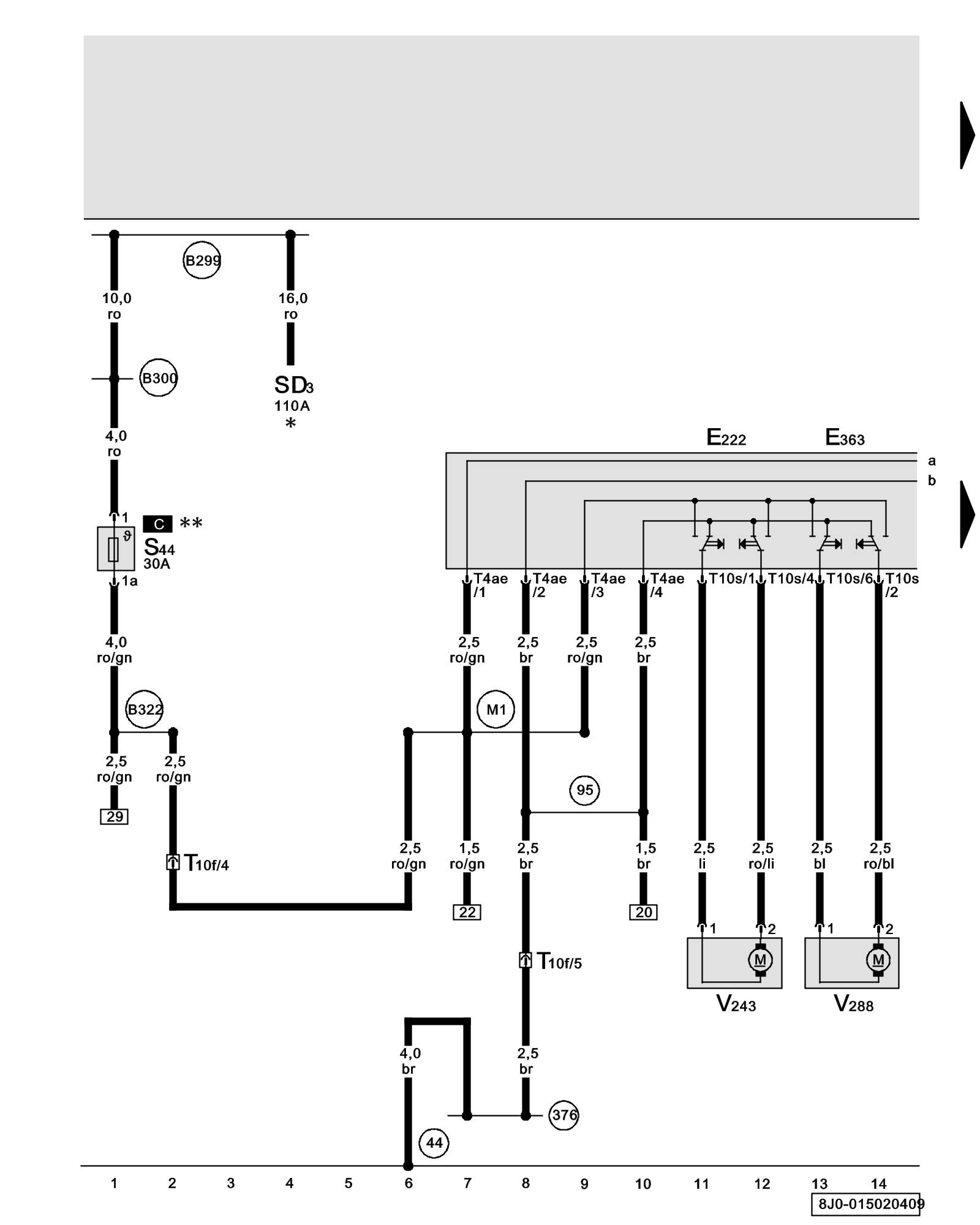

Diagram 15/2 (Tracks 1-14)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver's Seat Tilt Adjustment Switch, Driver's Seat Fore/Aft Switch, Driver's Power Seat Adjustment Circuit Breaker 1, Driver's Seat Inclination Adjustment Motor, Seat Fore/Aft Adjustment Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E222 - Driver's Seat Tilt Adjustment Switch Locations

E363 - Driver's Seat Fore/Aft Switch Locations

S44 - Driver's Power Seat Adjustment Circuit Breaker 1 Overview Of Fuses

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

T4ae - 4-Pin Connector, on seat adjustment switch

T10f - 10-Pin Connector, red, below driver's seat Overview of connector stations and pin connectors

T10s - 10-Pin Connector, on seat adjustment switch

V243 - Driver's Seat Inclination Adjustment Motor Locations

V288 - Seat Fore/Aft Adjustment Motor Locations

(44) - Ground Connection (on left lower A-pillar) Locations

(95) - Ground Connection 1 (in power seat wiring harness)

(376) - Ground Connection 11 (in main wiring harness)

(B299) - Plus Connection 3 (30) (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B322) - Plus Connection 8 (30a) (in main wiring harness)

(M1) - Plus Connection 1 (30) (in power seats wiring harness)

* - Main fuse panel, in right rear luggage compartment on battery

** - Relay panel under instrument panel, left

Next Diagram 15/3 (Tracks 15-28)
