Diagram 1/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

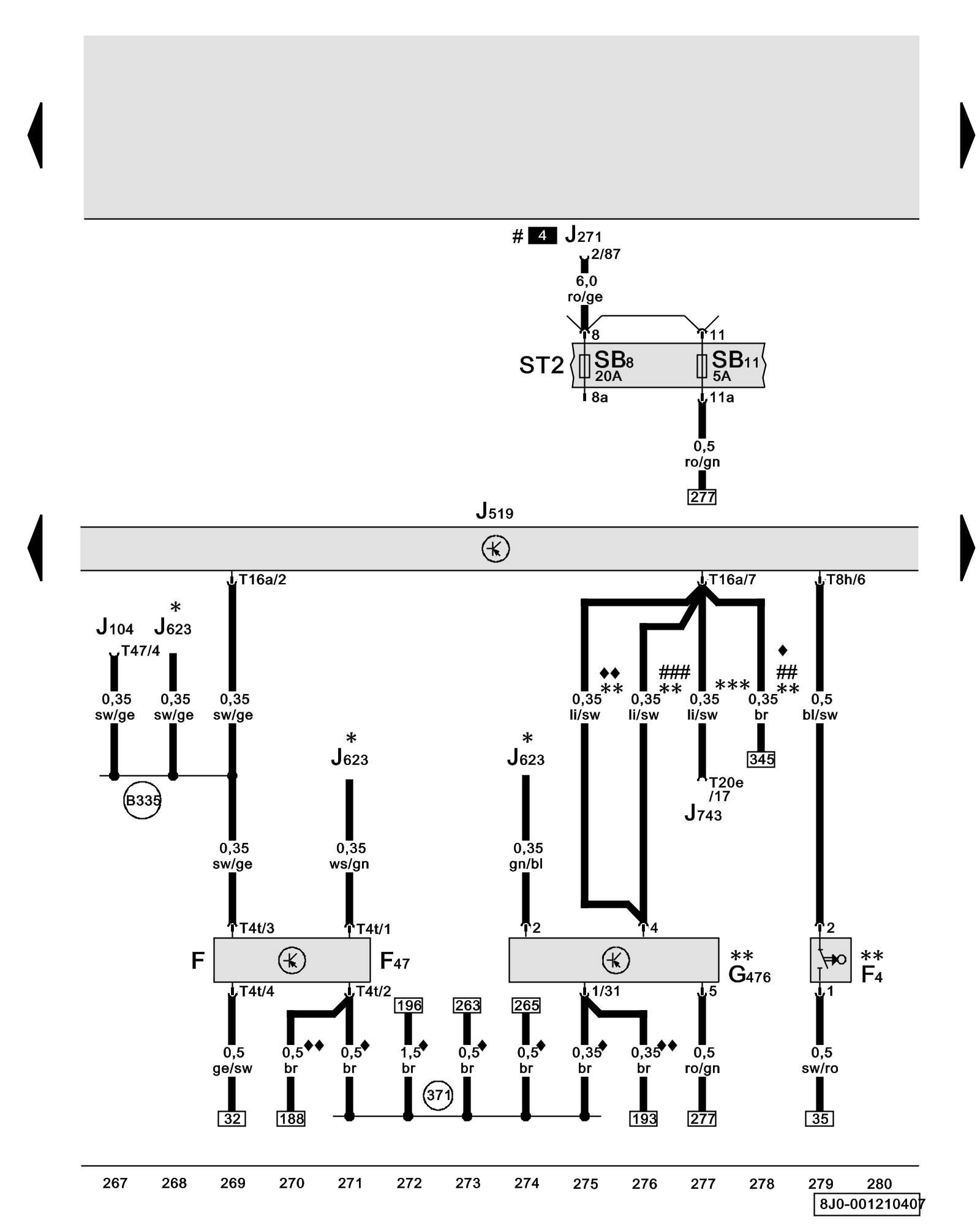

Vehicle Electrical System Control Module, Brake Light Switch, Brake Pedal Switch, Back-Up Light Switch, Clutch Position Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations

F4 - Back-Up Light Switch 6-Speed DSG Transmission 02E Overview

F47 - Brake Pedal Switch Locations

G476 - Clutch Position Sensor Locations

J104 - ABS Control Module Component Locations

J271 - Motronic Engine Control Module (ECM) Power Supply Relay Relay carrier in electronics box engine compartment

J519 - Vehicle Electrical System Control Module Component Locations

J623 - Engine Control Module (ECM) Component Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic 6-Speed DSG Transmission 02E Overview

SB8 - Fuse 8 (on fuse panel B) Locations

SB11 - Fuse 11 (on fuse panel B) Locations

T4t - 4-Pin Connector, black, on brake light switch

T8h - 8-Pin Connector, black (Connector F), on vehicle electrical system control module

T16a - 16-Pin Connector, black (Connector E), on vehicle electrical system control module

T20e - 20-Pin Connector, on Direct Shift Gearbox (DSG) Mechatronic

T47 - 47-Pin Connector, on ABS control module

(371) - Ground Connection 6 (in main wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)

* - => Wiring Diagram engine

** - Models with manual transmission

*** - Models with direct shift gearbox 02E

# - Relay and fuse carrier in electronics box engine compartment

## - Not for USA

### - Through May 2007 USA only

• - Through May 2007

•• - from June 2007

Previous Diagram 1/20 (Tracks 253-266)

Next Diagram 1/22 (Tracks 281-294)
