Diagram 19/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

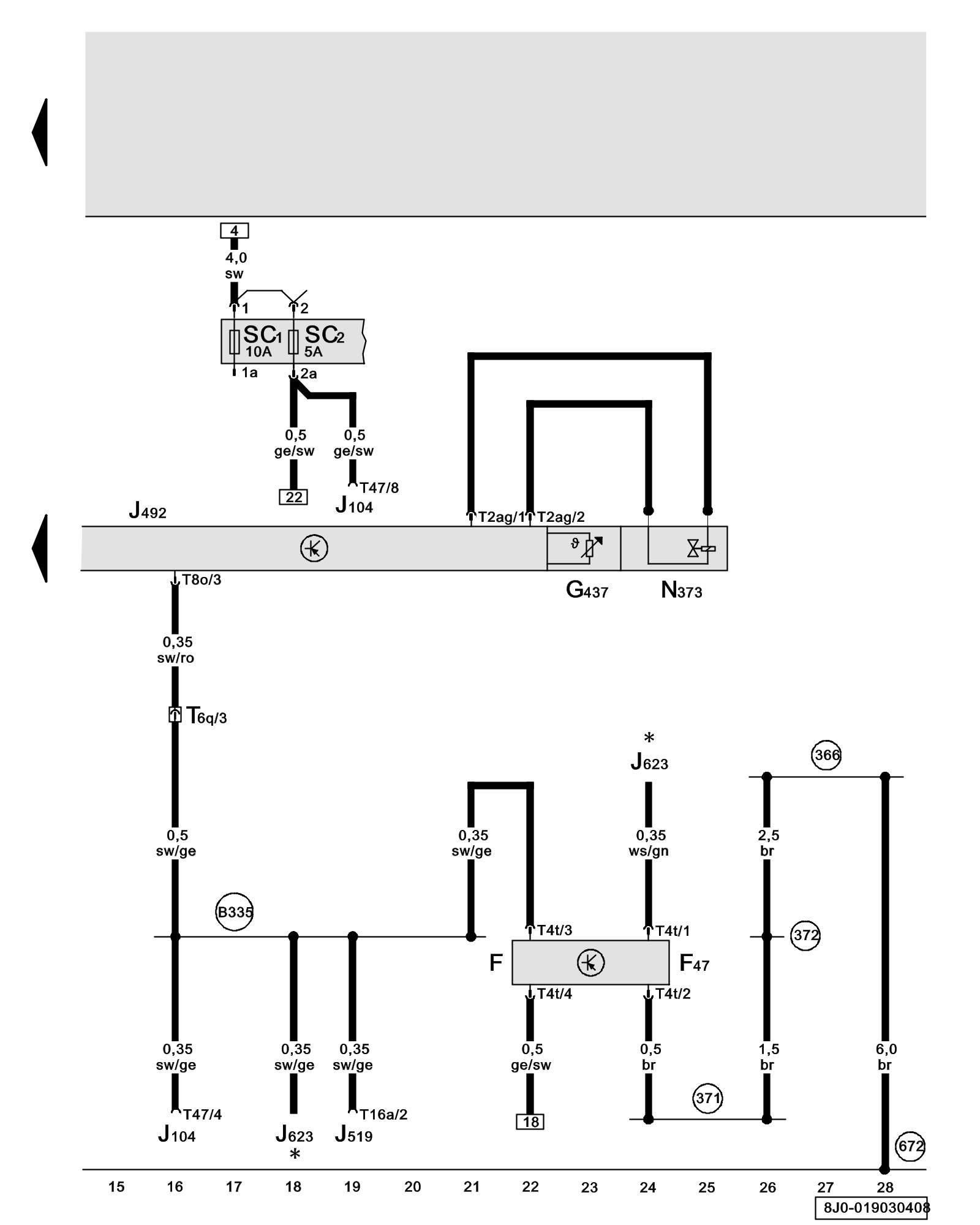

All-Wheel Drive Control Module, Brake Light Switch, Oil Pressure/Temperature Sensor, Haldex Clutch Control Valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations

F47 - Brake Pedal Switch Locations

G437 - Oil Pressure/Temperature Sensor Locations

J104 - ABS Control Module Component Locations

J492 - All-Wheel Drive Control Module Locations

J519 - Vehicle Electrical System Control Module Component Locations

J623 - Engine Control Module (ECM) Component Locations

N373 - Haldex Clutch Control Valve Locations

SC1 - Fuse 1 (on fuse panel C)

SC2 - Fuse 2 (on fuse panel C)

T2ag - Double Connector, near all-wheel drive control module

T4t - 4-Pin Connector, black, on brake light switch

T6q - 6-Pin Connector, black, on all-wheel drive control module

T8o - 8-Pin Connector, black, on all-wheel drive control module

T16a - 16-Pin Connector, black (Connector E), on vehicle electrical system control module

T47 - 47-Pin Connector, on ABS control module

(366) - Ground Connection 1 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(372) - Ground Connection 7 (in main wiring harness)

(672) - Ground Connection 2 (on left front long member) Locations

(B335) - Connection 1 (54) (in main wiring harness)

* - => Wiring Diagram engine

Previous Diagram 19/2 (Tracks 1-14)
