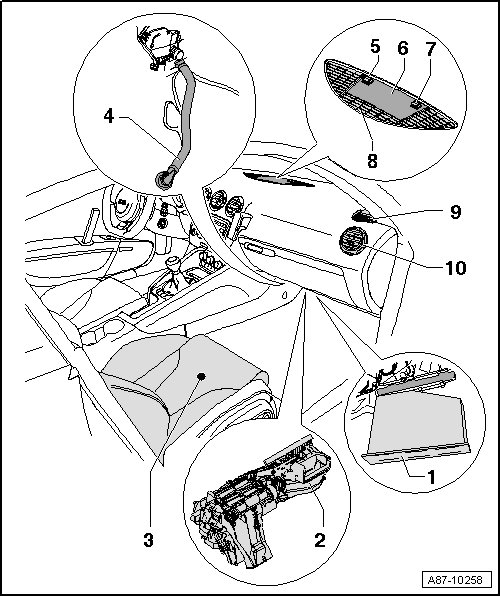

A/C Components Inside Passenger Compartment, Right Side

A/C Components Inside Passenger Compartment, Right Side






1 Dust and Pollen Filter

• Removing and installing, refer to => [ Dust and Pollen Filter ] Service and Repair.

• Follow the replacement intervals.

• With activated charcoal insert, refer to => [ Dust and Pollen Filter with Activated Charcoal Insert ] Description and Operation.

2 A/C Unit With Evaporator and Add-On Components

• Air guide in air conditioner and in vehicle; refer to => [ Air Guide In Evaporator Housing ] Air Guide In Evaporator Housing and => [ Air Guide In Air Distribution Housing ] Air Guide In Air Distribution Housing.

• Heating & A/C unit components, refer to=> [ A/C Unit Components ] A/C Unit Components.

• Clean air conditioning system evaporator with Ultrasound A/C Cleaner (VAS 6189) Refer to => [ Evaporator, Cleaning with Ultrasound A/C Cleaner ] Evaporator, Cleaning With Ultrasound A/C Cleaner.

• Heating and A/C unit, removing and installing, refer to => [ A/C Unit ] Removal and Replacement.

3 Right Front Seat Temperature Sensor (G345) and Right Front Heated Seat (Z46)

• Seat heater is not installed in all vehicles (optional equipment).

• Activation of seat heater is displayed in Climatronic control module (J255) , checking use Vehicle diagnosis, testing and information system (VAS5051B) in the "Guided Fault Finding".

4 Condensation Drain

• Checking, removing and installing, refer to => [ Condensation Water Drain Hose, Checking ] Testing and Inspection.

5 Sunlight Photo Sensor (G107)

• Removing and installing, refer to=> [ Sunlight Photo Sensor (G107) ] Service and Repair and.

6 Cover For Loudspeaker In Center Instrument Panel

7 Light Emitting Diode for Central Locking System

8 Defroster Vent/Front Window

9 Defroster Vent/Right Side Window

10 Instrument Panel Vent, Right

• Removing and installing instrument panel vents, refer=> [ Instrument Panel Vents ] Instrument Panel Vents.
