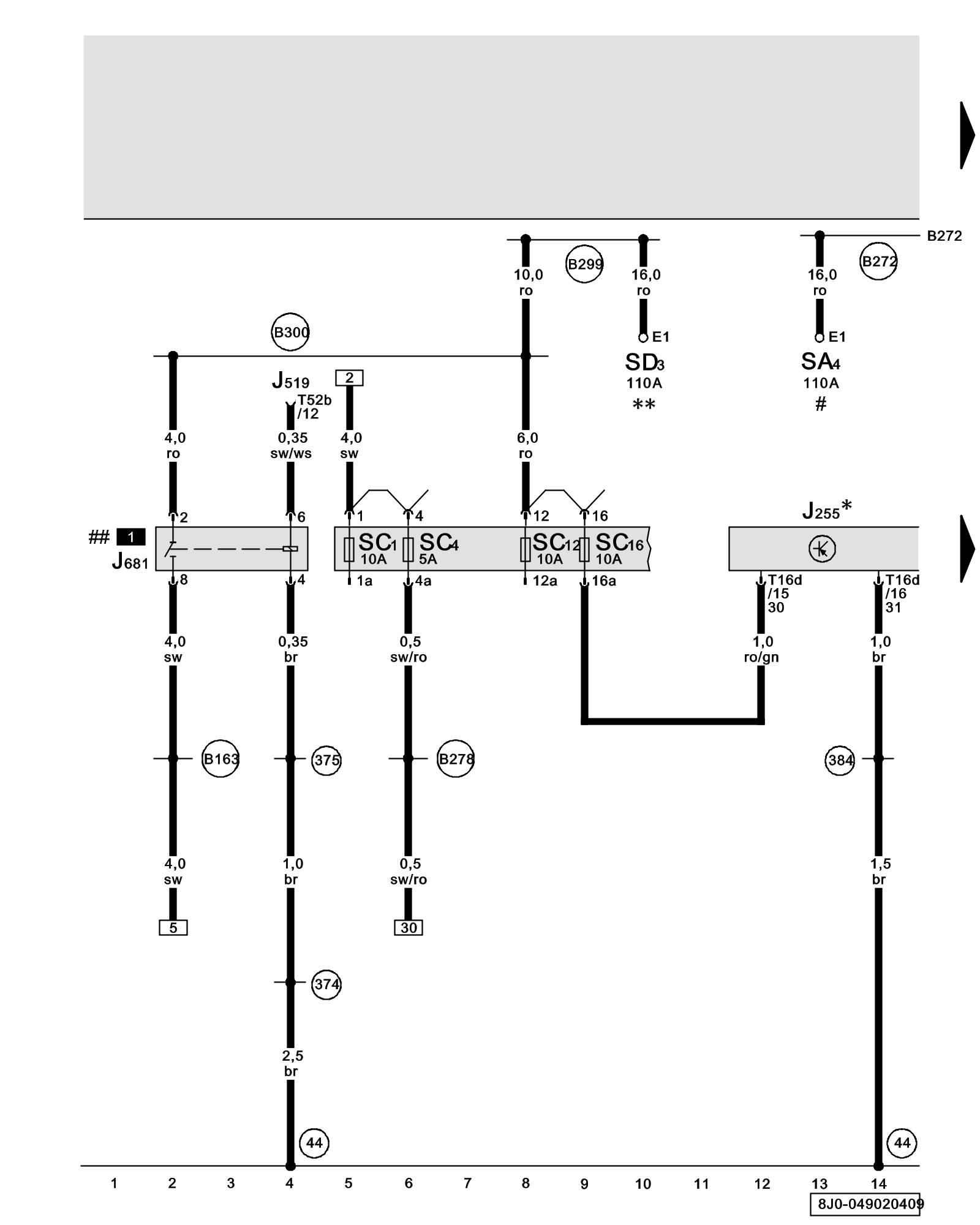

Diagram 49/2 (Tracks 1-14)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Climatronic Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J255 - Climatronic Control Module Components Inside Pass Compartment

J519 - Vehicle Electrical System Control Module Component Locations

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier on Vehicle Electrical System Control Module, from June 2009

SA4 - Fuse 4 (on fuse panel A) Locations

SC1 - Fuse 1 (on fuse panel C)

SC4 - Fuse 4 (on fuse panel C)

SC12 - Fuse 12 (on fuse panel C)

SC16 - Fuse 16 (on fuse panel C)

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

T16d - 16-Pin Connector, black (Connector D), on Climatronic control module

T52b - 52-Pin Connector, yellow, on vehicle electrical system control module

(44) - Ground Connection (on left lower A-pillar) Locations

(374) - Ground Connection 9 (in main wiring harness)

(375) - Ground Connection 10 (in main wiring harness)

(384) - Ground Connection 19 (in main wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B272) - Plus Connection (30) (in main wiring harness)

(B278) - Plus Connection 2 (15a) (in main wiring harness)

(B299) - Plus Connection 3 (30) (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

* - A/C Control Head

** - Main fuse panel, in right rear luggage compartment on battery

# - Main fuse panel electronics box, in front left engine compartment

## - Relay Carrier on Vehicle Electrical System Control Module

Next Diagram 49/3 (Tracks 15-28)
