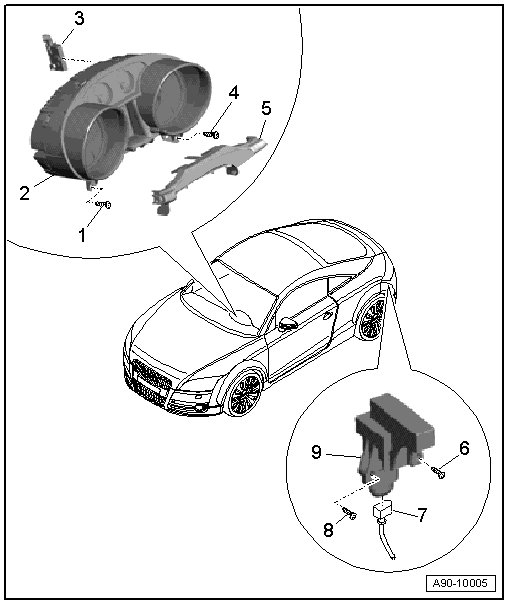

Instrument Cluster and Clock Receiver Overview

Instrument Cluster and Clock Receiver Overview

• All warning lamps in instrument cluster are fitted with light-emitting diodes. In case an indicator lamp is malfunctioning, the instrument cluster must be replaced.






1 Screw

• 2.5 Nm

2 Instrument Cluster

• With the instrument cluster control module (J285).

• Removing and installing, refer to => [ Instrument Cluster ] Instrument Cluster.

3 Electrical connector

• For instrument cluster.

4 Screw

• 2.5 Nm

5 Gap Cover

• Removing and installing, refer to Storage Compartments and Covers.

6 Screw

• 2.5 Nm

7 Electrical Connector

• For Radio Frequency Controlled Clock Receiver (J489).

8 Screw

• 2.5 Nm

9 Radio Frequency Controlled Clock Receiver (J489)

• Removing and installing, refer to => [ Radio Frequency Controlled Clock Receiver (J489) ] Service and Repair.
