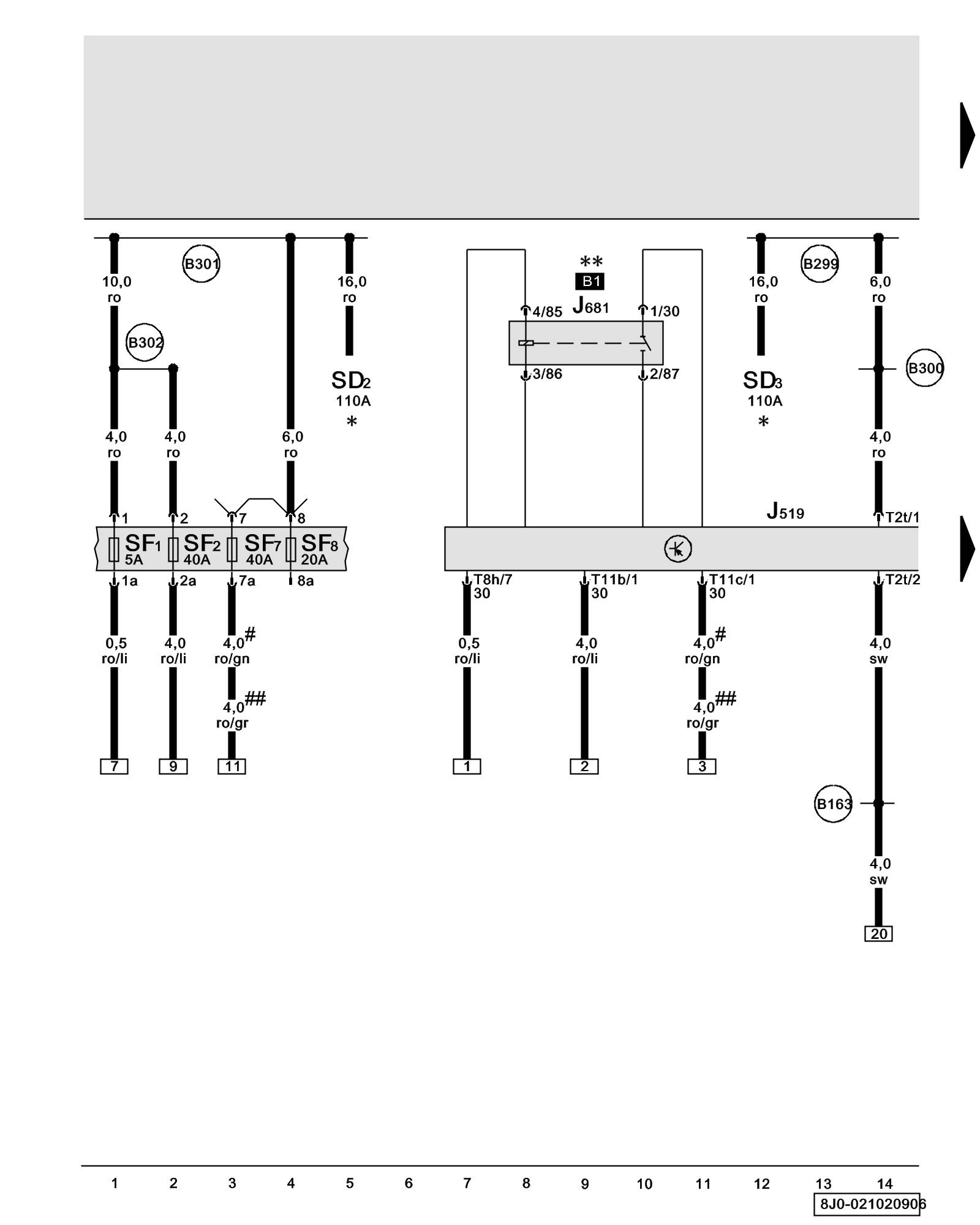

Diagram 21/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Power Supply Relay 2 (terminal 15), Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Component Locations

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier on Vehicle Electrical System Control Module, from June 2009

SD2 - Fuse 2 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

SF1 - Fuse 1 (on fuse panel F) Locations

SF2 - Fuse 2 (on fuse panel F) Locations

SF7 - Fuse 7 (on fuse panel F) Locations

SF8 - Fuse 8 (on fuse panel F) Locations

T2t - Double Connector, black (Connector L), on vehicle electrical system control module

T8h - 8-Pin Connector, black (Connector F), on vehicle electrical system control module

T11b - 11-Pin Connector, black (Connector A), on vehicle electrical system control module

T11c - 11-Pin Connector, brown (Connector D), on vehicle electrical system control module

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B299) - Plus Connection 3 (30) (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B301) - Plus Connection 5 (30) (in main wiring harness)

(B302) - Plus Connection 6 (30) (in main wiring harness)

* - Main fuse panel, in right rear luggage compartment on battery

** - Relay Carrier on Vehicle Electrical System Control Module, under instrument panel, left

# - Coupe

## - Roadster

Next Diagram 21/3 (Tracks 15-28)
