2.0L Gasoline CETA Overviews
Component Locations: Engine Management System

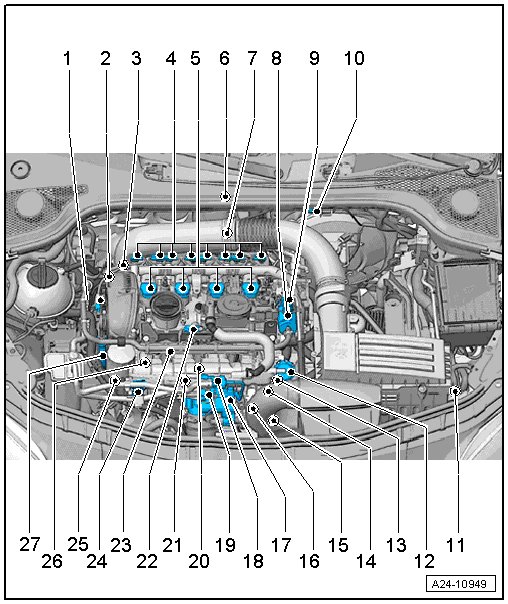

2.0L gasoline CETA Overviews
1 Camshaft adjustment valve 1 -N205- => [ Camshaft Adjustment Valve 1 ] 2.0L Gasoline CCTA Overviews
2 Wastegate bypass regulator valve -N75- => [ Components on Turbocharger ] 2.0L Gasoline CCTA Overviews
3 Turbocharger recirculation valve -N249- => [ Components on Turbocharger ] 2.0L Gasoline CCTA Overviews
4 Cam adjustment actuators
• Cam adjustment actuator 1 -F366-
• Cam adjustment actuator 2 -F367-
• Cam adjustment actuator 3 -F368-
• Cam adjustment actuator 4 -F369-
• Cam adjustment actuator 5 -F370-
• Cam adjustment actuator 6 -F371-
• Cam adjustment actuator 7 -F372-
• Cam adjustment actuator 8 -F373-
• Component location
5 Ignition coils with power output stage => [ Ignition coils ] See Image Below.
• Ignition coil 1 with power output stage -N70-
• Ignition coil 2 with power output stage -N127-
• Ignition coil 3 with power output stage -N291-
• Ignition coil 4 with power output stage -N292-
6 Engine control module -J623-
7 Heated oxygen sensor -G39- Locations
8 High-pressure pump => [ High pressure pump ] See Image Below.
9 Fuel pressure regulator valve -N276- => [ High pressure pump ] See Image Below.
10 Electrical connector for Heated oxygen sensor -G39-
Cont:
11 - Engine coolant temperature sensor on radiator -G83- => [ Engine Coolant Temperature (ECT) Sensor ] Locations
12 - Vacuum Diaphragm for the Intake Manifold Flap => [ Intake Manifold Runner Control (IMRC) Valve ] 2.0L Gasoline CCTA Overviews
13 - Intake manifold runner control valve -N316- => [ Intake Manifold Runner Control (IMRC) Valve ] 2.0L Gasoline CCTA Overviews
14 - Engine speed sensor -G28- => [ Engine Speed (RPM) Sensor ] 2.0L Gasoline CCTA Overviews
15 - Charge air pressure sensor -G31- => [ Charge Air Pressure Sensor ] 2.0L Gasoline CCTA Overviews
16 - Electrical connectors
• For Knock sensor 1 -G61-
• For Camshaft position sensor -G40-
17 - Throttle valve control module -J338-
18 - EVAP canister purge regulator valve 1 -N80- => [ EVAP canister purge valve ] See Image Below.
19 - Intake air temperature sensor -G42-
20 - Knock sensor 1 -G61- => [ Knock sensor 1 ] See Image Below.
21 - Engine coolant temperature sensor -G62- => [ Engine Coolant Temperature (ECT) Sensor ] 2.0L Gasoline CCTA Overviews
22 - Camshaft position sensor -G40- => [ Camshaft Position (CMP) Sensor ] 2.0L Gasoline CCTA Overviews
23 - Fuel pressure sensor -G247- => [ MAP and fuel pressure sensors ] See Image Below.
24 - Manifold absolute pressure sensor -G71- => [ MAP and fuel pressure sensors ] See Image Below.
25 - Oil pressure switches => [ Oil Pressure Switch ] 2.0L Gasoline CCTA Overviews
• Reduced oil pressure switch -F378-
• Oil pressure switch -F22-
26 - Intake manifold runner position sensor -G336-
27 - Oil pressure regulation valve -N428- => [ Oil Pressure Regulation Valve ] 2.0L Gasoline CCTA Overviews
High pressure pump
1 - Fuel pressure regulator valve -N276-
2 - High pressure pump
EVAP canister purge valve
1 - EVAP canister purge regulator valve 1 -N80-
Knock sensor 1
- Connector for Knock sensor 1 -G61-
2 - Knock sensor 1 -G61-

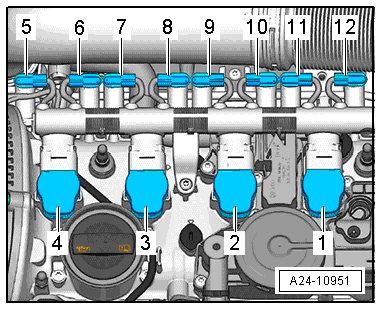

Ignition coils
1 - Ignition coil 1 with power output stage -N70-
2 - Ignition coil 2 with power output stage -N127-
3 - Ignition coil 3 with power output stage -N291-
4 - Ignition coil 4 with power output stage -N292-
5 - Cam adjustment actuator 2 -F367- (for cylinder 1)
6 - Cam adjustment actuator 1 -F366- (for cylinder 1)
7 - Cam adjustment actuator 3 -F368- (for cylinder 2)
8 - Cam adjustment actuator 4 -F369- (for cylinder 2)
9 - Cam adjustment actuator 6 -F371- (for cylinder 3)
10 - Cam adjustment actuator 5 -F370- (for cylinder 3)
11 - Cam adjustment actuator 7 -F372- (for cylinder 4)
12 - Cam adjustment actuator 8 -F373- (for cylinder 4)

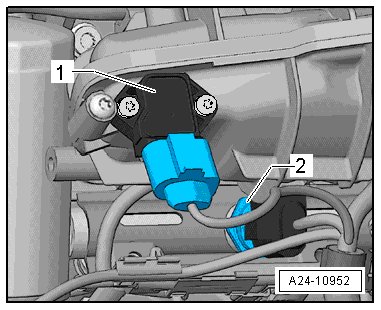

MAP and fuel pressure sensors
1 - Manifold absolute pressure sensor -G71-
2 - Fuel pressure sensor -G247-
