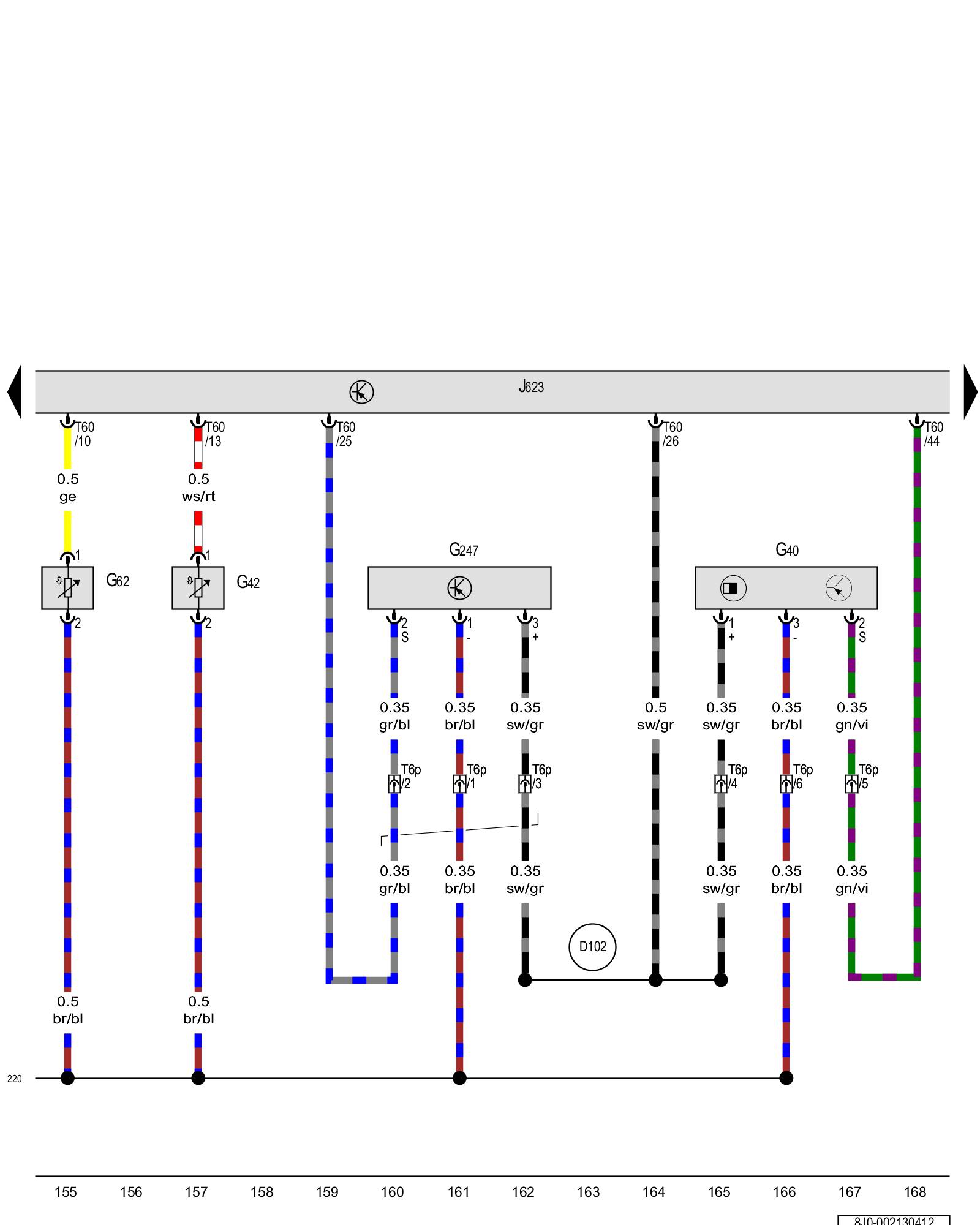

Diagram 2/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Camshaft position sensor, Intake air temperature sensor, Engine coolant temperature sensor, Fuel pressure sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft position sensor Engine Management System

G42 - Intake air temperature sensor Engine Management System

G62 - Engine coolant temperature sensor Engine Management System

G247 - Fuel pressure sensor Engine Management System

J623 - Engine control module Component Locations

T6p - 6-pin connector, on the engine, front

T60 - 60-pin connector Locations

(220) - Sensor ground connection (in engine compartment wiring harness)

(D102) - Connection (2) (in engine compartment wiring harness)
