Diagram 2/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

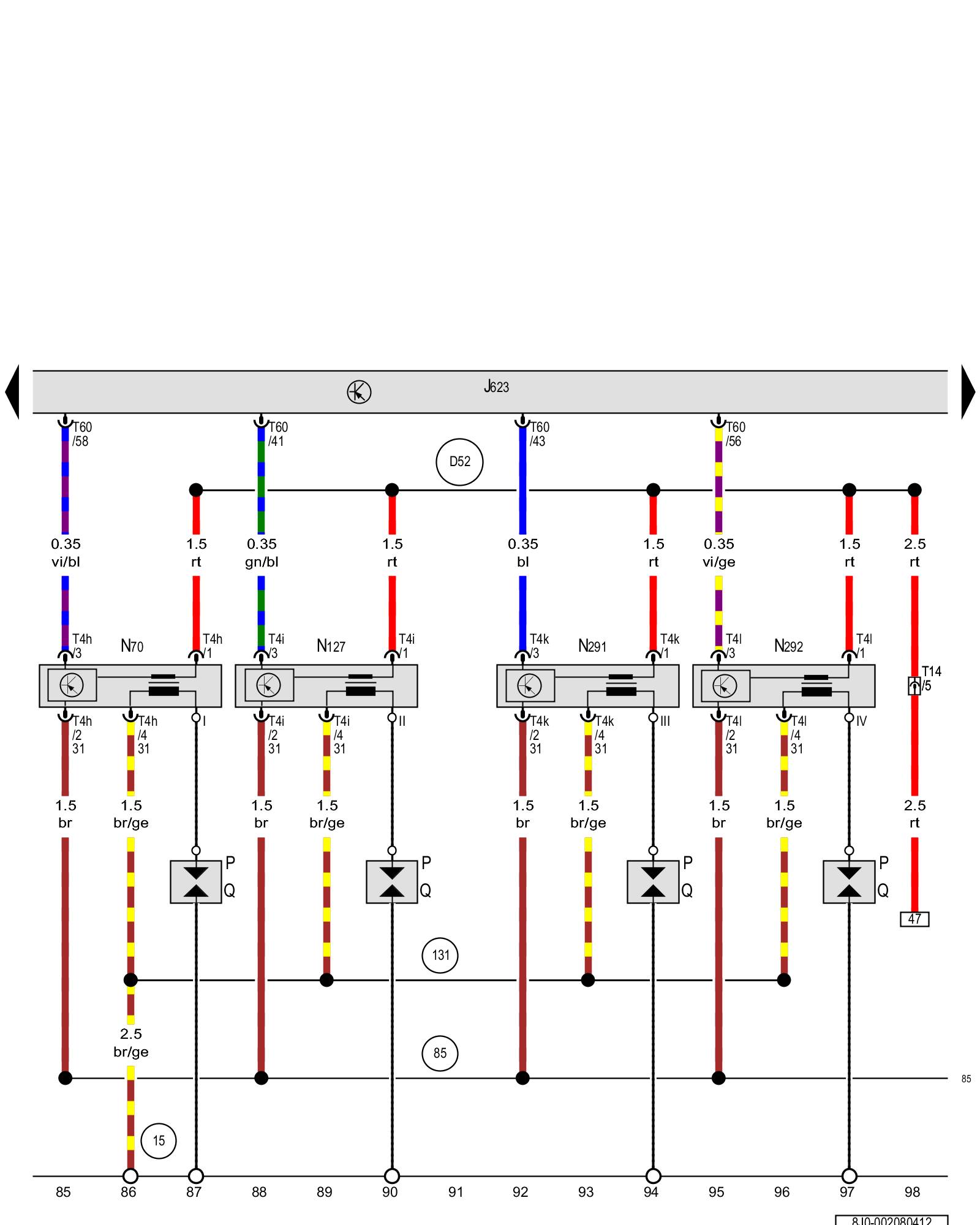

Engine control module, Ignition coil 1 with power output stage





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Component Locations

N70 - Ignition coil 1 with power output stage

N127 - Ignition coil 2 with power output stage

N291 - Ignition coil 3 with power output stage

N292 - Ignition coil 4 with power output stage

P - Spark plug connectors

Q - Spark plugs

T4h - 4-pin connector

T4i - 4-pin connector

T4k - 4-pin connector

T4l - 4-pin connector

T14 - 14-pin connector, in the engine compartment, left front

T60 - 60-pin connector Locations

(15) - Ground connection on cylinder head

(85) - Ground connection 1 (in engine compartment wiring harness)

(131) - Ground connection 2 (in engine compartment wiring harness)

(D52) - Positive connection (15a) (in engine compartment wiring harness)
