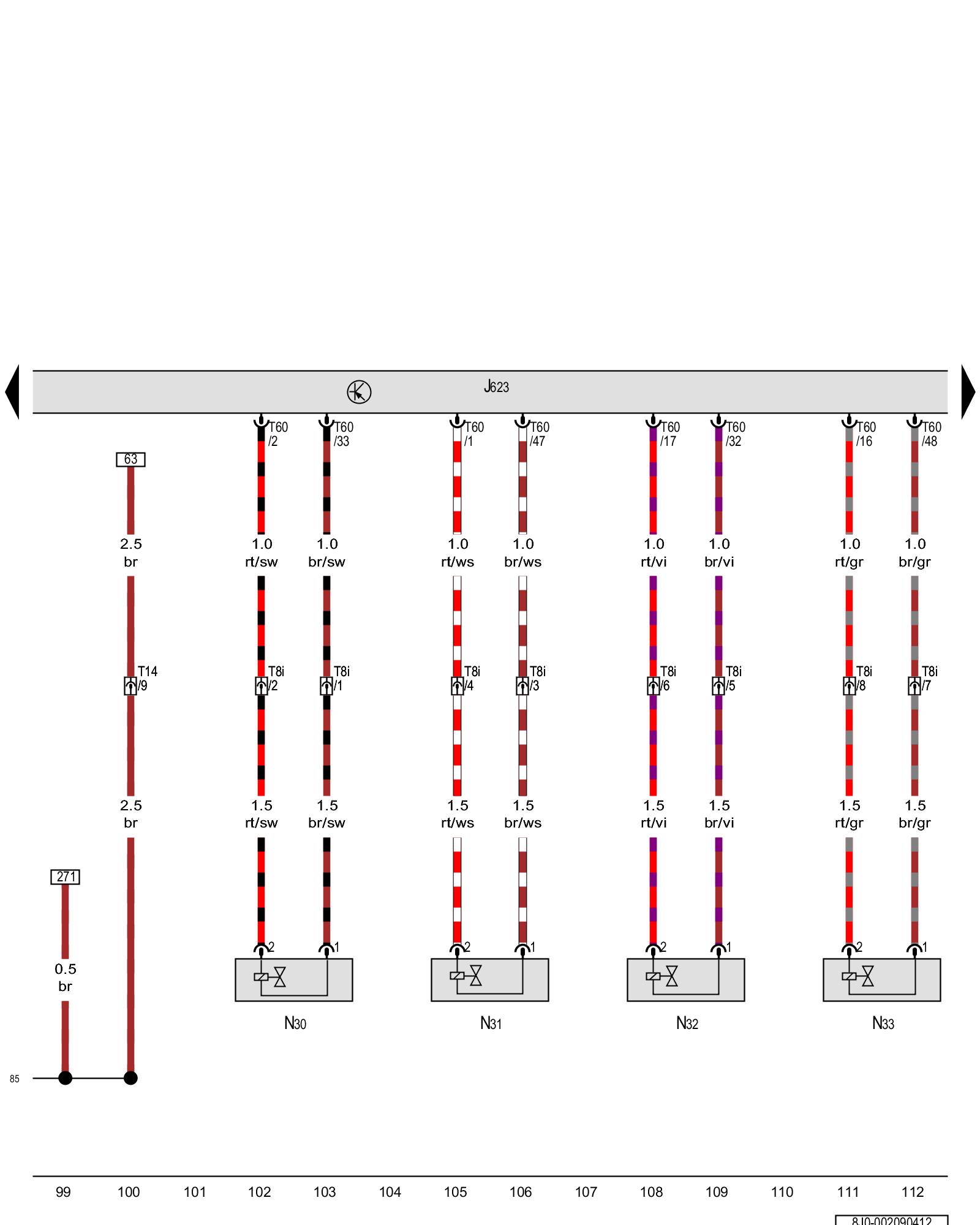

Diagram 2/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module, Cylinder 1 fuel injector, Cylinder 2 fuel injector, Cylinder 3 fuel injector, Cylinder 4 fuel injector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Component Locations

N30 - Cylinder 1 fuel injector

N31 - Cylinder 2 fuel injector

N32 - Cylinder 3 fuel injector

N33 - Cylinder 4 fuel injector

T8i - 8-pin connector, near the fuel injectors

T14 - 14-pin connector, in the engine compartment, left front

T60 - 60-pin connector Locations

(85) - Ground connection 1 (in engine compartment wiring harness)
