Fuel Level Sensor (G)

Fuel Level Sensor (G)

Removing

Follow all safety precautions. Refer to => [ Safety Precautions ] General Information.

Follow the guidelines for cleanliness. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

TT Roadster:

• It is necessary to remove the fuel tank in order to remove the fuel level sensor (G) on the Audi TT Roadster.

- Removing the fuel tank, refer to => [ Fuel Tank with Attachments ] Fuel Tank with Attachments.

All Vehicles:

- Install the fuel delivery unit. Refer to => [ Fuel Delivery Unit ] Fuel Delivery Unit.

Version 1:






Risk of damage.

• Before disconnecting electrical connectors on the fuel level sensor, first release the connector contact retaining tab.

- Disconnect the connectors - 1 through 3 -.

- Pry on the retaining tabs - 4 and 5 - with a screwdriver and pull the fuel level sensor off downward - arrow -.

Version 2:

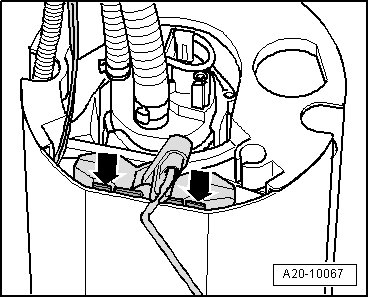

- Release the retaining tabs - arrows - with a screwdriver and pull the fuel level sensor upward and out.








Risk of damage.

• Before disconnecting electrical connectors on fuel level sensor, first release connector contact retaining tab.

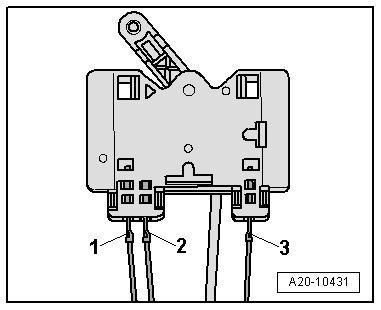

- Disconnect the connectors - 1 through 3 -.

Installing

Install in reverse order, paying attention to the following:

Version 1:






- Insert the fuel level sensor in the guides on the fuel delivery unit and push upward until it engages.

- Connect the electrical connections - 1 through 3 - and make sure they are securely engaged.

Version 2:






- Connect the electrical connections - 1 through 3 - and make sure they are securely engaged.

- Insert the fuel level sensor (G) in the guides on the fuel delivery unit and push upward until it engages.

Continuation for All Versions:

- Install fuel delivery unit.=> [ Installing ] Fuel Delivery Unit, observing notes for connecting battery.
