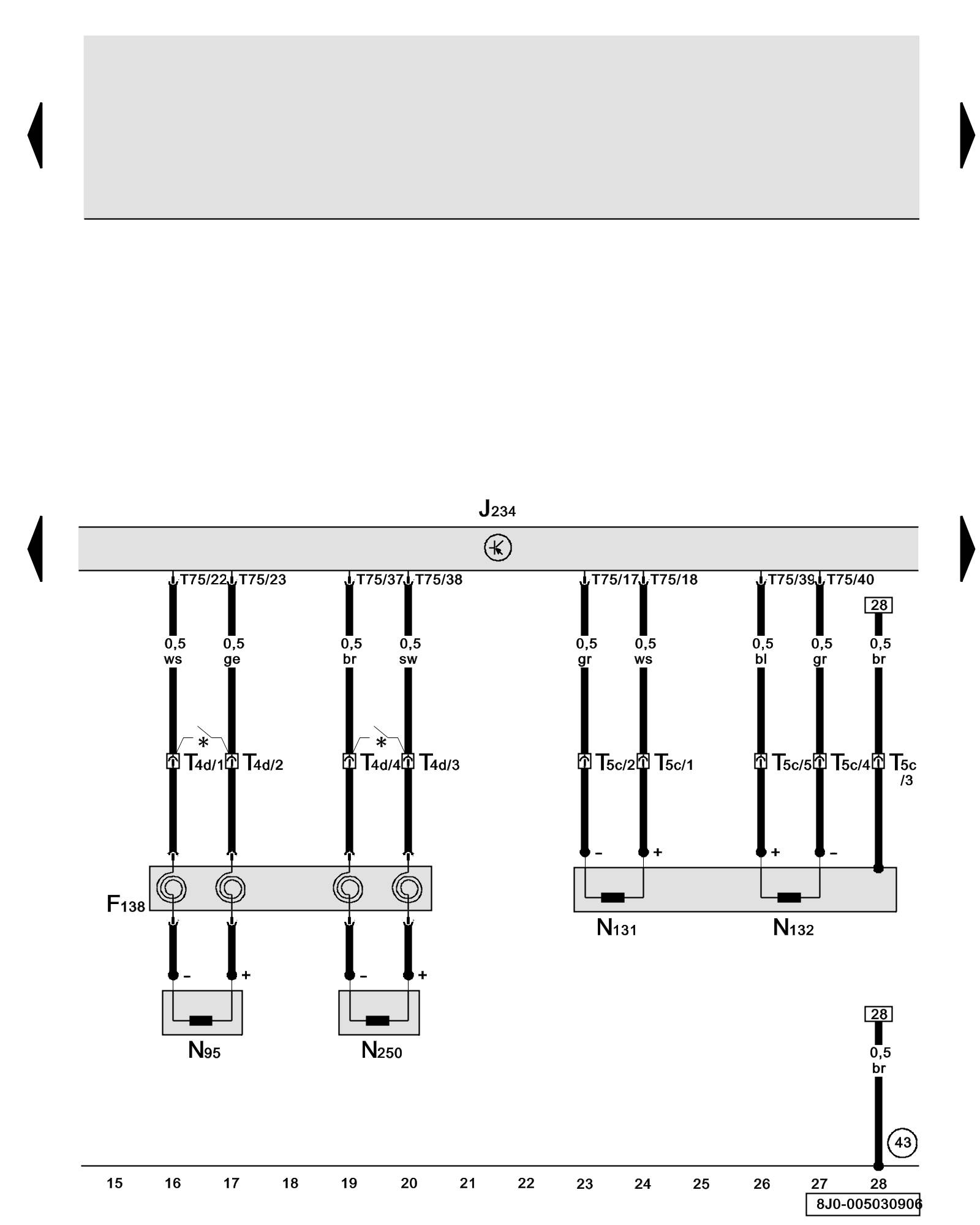

Diagram 5/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag Control Module, Driver's Airbag Igniter, Front Passenger's Airbag Igniter, Airbag Spiral Spring/Return Spring With Slip Ring





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F138 - Airbag Spiral Spring/Return Spring With Slip Ring Locations

J234 - Airbag Control Module Component Locations

N95 - Driver's Airbag Igniter Locations

N131 - Front Passenger's Airbag Igniter 1 Locations

N132 - Front Passenger's Airbag Igniter 2 Locations

N250 - Driver's Airbag Igniter 2 Locations

T4d - 4-Pin Connector, yellow, on steering column electronic systems control module

T5c - 5-Pin Connector, yellow, behind right instrument panel

T75 - 75-Pin Connector, yellow, on airbag control module

(43) - Ground Connection (on right lower A-pillar) Locations

* - Short circuit bridge becomes effective when connector is unplugged
