Engine Coolant Temperature Sensor on Radiator

Engine Coolant Temperature Sensor on Radiator

Removing

• Engine cold.

- Briefly open the coolant reservoir cap to reduce the residual pressure in the coolant system.

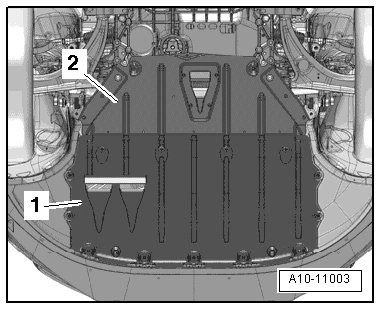

- Remove the front noise insulation - 1 -.

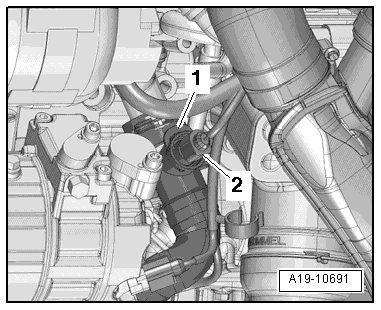

- Disconnect electrical connector - 2 - on Engine Coolant Temperature (ECT) Sensor on Radiator (G83).






• Lay a cloth below to catch escaping coolant.

- Remove the retaining clip - 1 - and the engine coolant temperature (ECT) sensor.

Installing

Installation is done is reverse order, observe the following:

• Replace O-ring.

• Insert the new engine coolant temperature (ECT) sensor immediately in the connection to prevent coolant loss.

- Install the noise insulation.

- Check the coolant level => [ Check the coolant level. ] Service and Repair.
