System Specifications

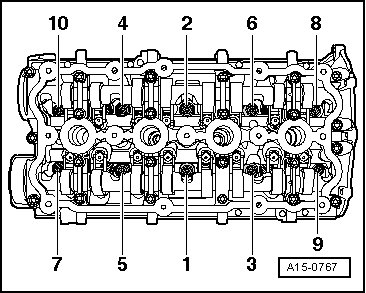

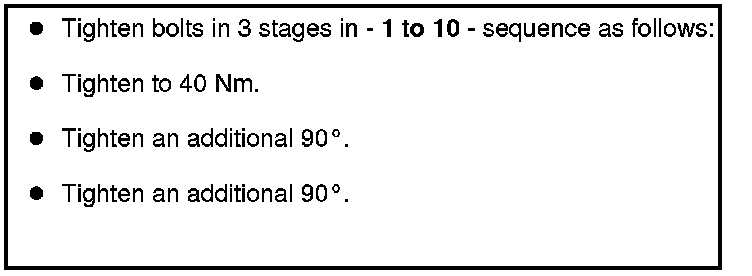

Cylinder Head, Tightening Specifications and Sequence

Replace bolts which have been tightened to torque









Maximum permissible distortion 0.05 mm

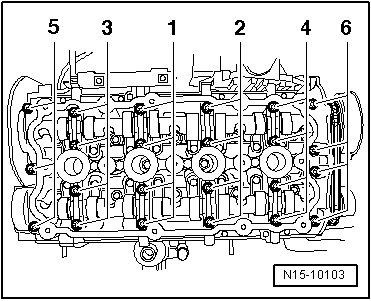

Guide Frame Tightening Sequence





- Replace bolts

- Hand-tighten bolts in several stages in sequence - 1 through 6 -.

- Tighten the bolts in sequence - 1 through 6 - to 8 Nm using a torque wrench.

- Give 90° (1/4 turn) additional turn in sequence - 1 through 6 - using rigid wrench.

• Ensure guide frame is not tilted.

Intake manifold Specifications

Turbocharger Specifications

Camshaft Sprocket Specifications
