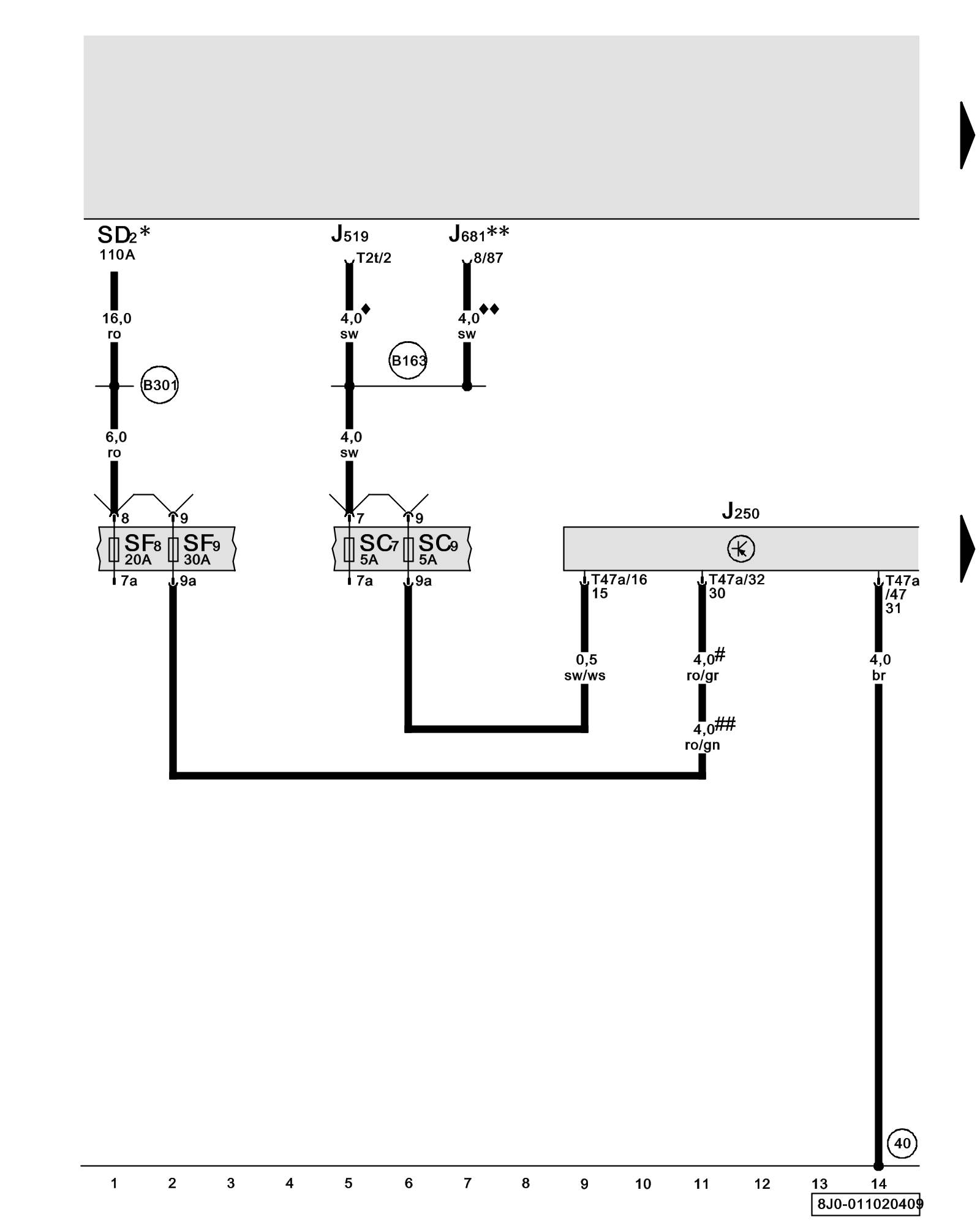

Diagram 11/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Electronic Damping Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J250 - Electronic Damping Control Module Component Locations

J519 - Vehicle Electrical System Control Module Component Locations

J681 - Power Supply Relay 2 (terminal 15) Relay Carrier on Vehicle Electrical System Control Module, from June 2009

SC7 - Fuse 7 (on fuse panel C)

SC9 - Fuse 9 (on fuse panel C)

SD2 - Fuse 2 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

SF8 - Fuse 8 (on fuse panel F) Locations

SF9 - Fuse 9 (on fuse panel F) Locations

T2t - Double Connector, black (Connector L), on vehicle electrical system control module

T47a - 47-Pin Connector, on electronic damping control module

(40) - Ground Connection (below rear seat bench, right) Locations

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B301) - Plus Connection 5 (30) (in main wiring harness)

* - Main fuse panel, in right rear luggage compartment on battery

** - Relay Carrier on Vehicle Electrical System Control Module

# - Coupe

## - Roadster

• - Through May 2009

•• - from June 2009
