Transmission and Drivetrain: Locations

All-Wheel Drive System

All-Wheel Drive (4MOTION)







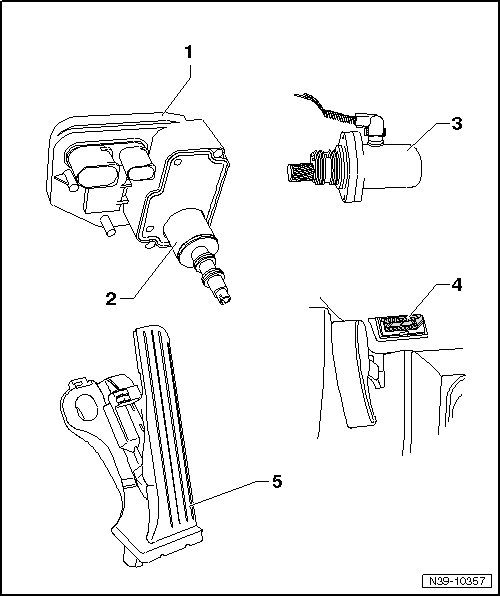

1 All Wheel Drive Control Module -J492-
• Oil Pressure/Temperature Sensor -G437- integrated in Control Module
• Mounted on Rear Differential => [ Haldex Clutch ] See Image Below.
2 Haldex clutch control valve -N373-
• Mounted on -J492-
3 Haldex clutch pump -V181-
• Mounted on Rear Differential
4 Data Link Connector (DLC)
• Location: Left front footwell.
5 Throttle Position (TP) sensor -G79-

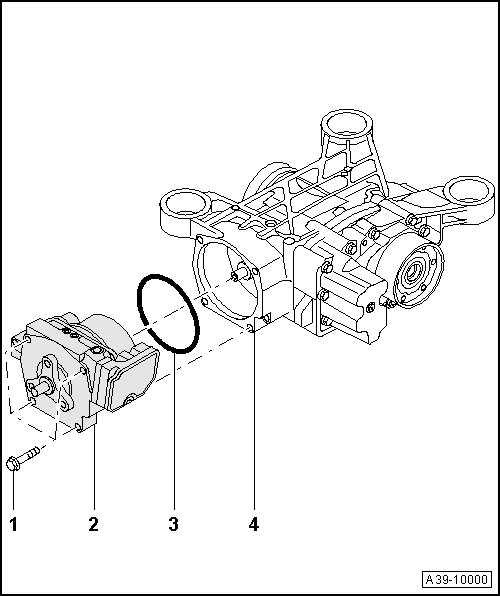

Haldex Clutch






2 - Haldex Clutch with All Wheel Drive Control Module -J492-
4 - Rear Final Drive
