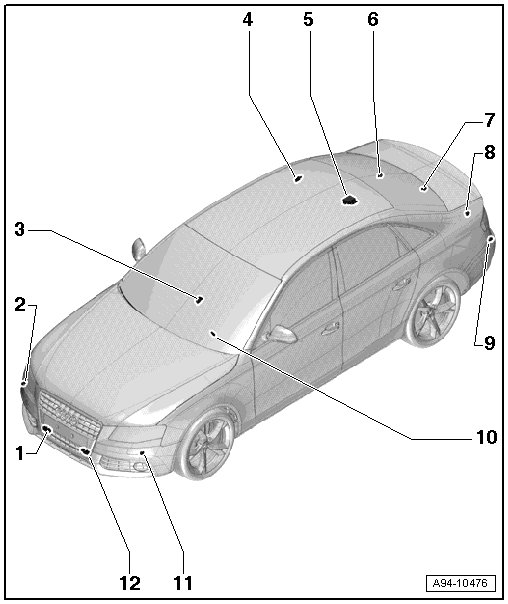

Parking Aid Overview

Parking Aid Overview






1 Right Front Center Parking Aid Sensor (G253)

• In the radiator grille.

• Removing and installing:

• through MY 2012, refer to => [ Front Parking Aid Sensors, Sedan and Avant, through MY 2012 ] Front Parking Aid Sensors, Sedan and Avant, Through MY 2012.



• allroad, refer to => [ Front Parking Aid Sensors, allroad ] Front Parking Aid Sensors, Allroad

2 Right Front Parking Aid Sensor (G252)

• In the front bumper.

• Removing and installing:

• through MY 2012, refer to => [ Front Parking Aid Sensors, Sedan and Avant, through MY 2012 ] Front Parking Aid Sensors, Sedan and Avant, Through MY 2012



• allroad, refer to => [ Front Parking Aid Sensors, allroad ] Front Parking Aid Sensors, Allroad

3 Parking Aid Button (E266)

• Only with the 8 channel parking aid.

4 Rear Parking Aid Warning Buzzer (H15)

• On the right rear belt relay point.

• Removing and installing, refer to => [ Rear Parking Aid Warning Buzzer ] Rear Parking Aid Warning Buzzer.

5 Parking Aid Control Module (J446)

• Integrated in the Vehicle electrical system control module (J519) depending on the date of manufacture from MY 2013. Refer to Electronic Parts Catalog (ETKA).

• Removing and installing, refer to:

• => [ Parking Aid Control Module (J446), Vehicles without Trailer Hitch ] Parking Aid Control Module (J446), Vehicles Without Trailer Hitch

• => [ Parking Aid Control Module (J446), Vehicles with Trailer Hitch ] Parking Aid Control Module (J446), Vehicles With Trailer Hitch

6 Right Rear Parking Aid Sensor (G206)

• In the rear bumper.

• Removing and installing, refer to => [ Rear Parking Aid Sensors ] Rear Parking Aid Sensors.

7 Right Rear Center Parking Aid Sensor (G205)

• In the rear bumper.

• Removing and installing, refer to => [ Rear Parking Aid Sensors ] Rear Parking Aid Sensors.

8 Left Rear Center Parking Aid Sensor (G204)

• In the rear bumper.

• Removing and installing, refer to => [ Rear Parking Aid Sensors ] Rear Parking Aid Sensors.

9 Left Rear Parking Aid Sensor (G203)

• In the rear bumper.

• Removing and installing, refer to => [ Rear Parking Aid Sensors ] Rear Parking Aid Sensors.

10 Front Parking Aid Warning Buzzer (H22)

• Only with the 8 channel parking aid.

• On the instrument panel central tube behind the instrument panel cover on the driver side.

• Removing and installing, refer to => [ Front Parking Aid Warning Buzzer (H22), 8 Channel Parking Aid ] Front Parking Aid Warning Buzzer (H22), 8 Channel Parking Aid.

11 Left Front Parking Aid Sensor (G255)

• Inside the front bumper.

• Removing and installing:

• through MY 2012=> [ Front Parking Aid Sensors, Sedan and Avant, through MY 2012 ] Front Parking Aid Sensors, Sedan and Avant, Through MY 2012.


• allroad => [ Front Parking Aid Sensors, allroad ] Front Parking Aid Sensors, Allroad.

12 Left Front Center Parking Aid Sensor (G254)

• Inside the front bumper.

• Removing and installing:

• through MY 2012=> [ Front Parking Aid Sensors, Sedan and Avant, through MY 2012 ] Front Parking Aid Sensors, Sedan and Avant, Through MY 2012.


• Allroad => [ Front Parking Aid Sensors, allroad ] Front Parking Aid Sensors, Allroad.

Component Location: Parking Aid Button






In the switch bank in the center console - arrow -

Removing and installing, refer to one of the following:

With Multi-Media Interface (MMI) basic, refer to => [ Button Unit, MMI Basic ] Button Unit, MMI Basic.

With MMI comfort, refer to => [ Button Unit, with MMI Comfort Equipment ] Button Unit, With MMI Comfort Equipment.

• The illustration shows the MMI comfort.

Parking Aid Control Module Frame Bolt Tightening Specifications






1. Nut - 3 Nm

2. Parking aid control module frame

3. Nut - 3 Nm

4. Cable ties
