Reduced Oil Pressure Switch (F378)






Reduced Oil Pressure Switch (F378)

Removing

Place a cloth under the accessory assembly bracket to collect leaking engine oil.

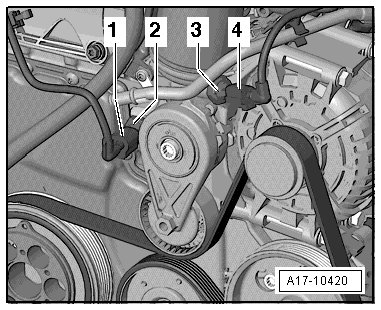

- Disconnect the electrical connector - 4 - on the reduced oil pressure switch.

- Remove the reduced oil pressure switch - 3 -.

Installing

Install in reverse order of removal. Note the following:

Tightening specifications, refer to => [ Oil Filter, Oil Cooler and Oil Pressure Switch Overview ] Oil Filter, Oil Cooler and Oil Pressure Switch Overview.

Replace the seal.

To prevent coolant loss, insert the new reduced oil pressure switch in the connecting pieces immediately.

- Check the oil level.
