Front Suspension
Suspension Strut and Mounting Bracket
Special tools, testers and auxiliary items required
• Spring Compressor (V.A.G 1752/1)
• Spring Mounting Tool (V.A.G 1752/2)
• Spring Holder for A4 (V.A.G 1752/7)
• Supplementary Set F/Audi A6 (C6) (V.A.G 1752/18)
• Rod, Extended (V.A.G 1752/18-3)
• Clamping Jaw (V.A.G 1752/19-1)
• Supplementary set for Audi A5/A4 (V.A.G 1752/19)
• Socket (T10001/3)
• Socket (T10001/4)
• Replacement Component for T10001 (T10001/7)
• Replacement Component for T10001 (T10001/11)
Assembly Overview
1 - Nut
• 50 Nm
• Always replace if removed.
2 - Shock Absorber Mount
3 - Washer
4 - Bracket
5 - Upper Spring Support
6 - Coil Spring
• Removing, refer to => [ Coil Spring, Removing ]
• Installing, refer to => [ Coil Spring, Installing ]
• There are different versions of the suspension. Refer to => [ Explanations of the Production Control Numbers (PR number) ] Description and Operation.
• Allocation Parts Catalog
7 - Spring
8 - Protective Sleeve
9 - Cap
10 - Low Spring Support
11 - Lower Spring Plate
12 - Shock Absorbers
• Replace, refer to => [ Shock Absorber, Replacing ]
• There are different versions of the suspension. Refer to => [ Explanations of the Production Control Numbers (PR number) ] Description and Operation.
• Always release gas and drain malfunctioning shock absorbers before disposal.
• Allocation Parts Catalog
Explanations of the Production Control Numbers (PR number)=> [ Explanations of the Production Control Numbers (PR number) ] Description and Operation.
The shock absorber combination installed in the vehicle is indicated by the corresponding PR number on the vehicle data plate.
Coil Spring, Removing

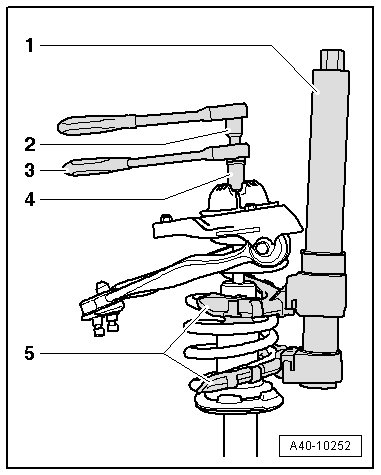

1. Spring Compressor (V.A.G 1752/1)
2. Ring Spanner Insert AF 21 (T10001/7)
3. Ratchet (T10001/11)
4. Ring Spanner Insert AF 21 (T10001/3)
5. Spring Holder (V.A.G 1752/7)
- Clamp the suspension strut in the vise with the shock absorber fork installed.
- Mark the installation location of the mounting bracket to the T-pin on the shock absorber tube (felt-tip pen).
- Tension coil spring using spring compressor (V.A.G 1752/1) and spring holder (V.A.G 1752/7) until upper suspension strut is free.
- Make sure the coil spring is seated in the spring holder - 2 - correctly.
1. Spring Compressor (V.A.G 1752/1)
2. Spring Holder (V.A.G 1752/7)
- Remove the nut from the piston rod using the tools - 2, 3 and 4 -.
1. Spring Compressor (V.A.G 1752/1)
2. Ring Spanner Insert AF 21 (T10001/7)
3. Ratchet (T10001/11)
4. Ring spanner Insert AF 21 (T10001/3)
5. Spring holder (V.A.G 1752/7)
- Remove individual components of suspension strut and pre-tensioned coil spring with spring compressor (V.A.G 1752/1).
Shock Absorber, Replacing
- Remove the cap - 1 - and the lower spring support - 2 -.
- Loosen suspension strut - 3 - using plastic hammer and remove upward.
- Drive the spring plate onto the new shock absorber using a plastic hammer.
Coil Spring, Installing
- Install the lower spring support and the cap.
- Position the tensioned coil spring on the lower spring support. End of spring coil must rest against stop - arrow - (permissible play max. 2 mm).
Install mounting bracket with spring washer onto pre-loaded spring so that spring washer makes contact on end of spring coil - arrow - (permissible play max. 2 mm).
- Position individual suspension strut components.
- Tighten the nut using special tools - item 1 -.
- Align the marking on the mounting bracket to the T-pin on the shock absorber tube and release the tension in the spring.
Mounting Bracket Installation Position
- Install the spring mounting tool (V.A.G 1752/2) as shown in the illustration.
1. Rod, extended (V.A.G 1752/18-3)
2. Suspension strut adjustment gauge (V.A.G 1752/19)
3. Spring mounting tool (V.A.G 1752/2)
4. Clamping jaw (V.A.G 1752/19-1)
- Tension the suspension strut with spring compressor vertically in the spring mounting tool (V.A.G 1752/2).
- Tension the suspension strut so the pin - 1 - engages in the clamping jaw opening - 2 -.
- When tensioning, make sure the front damping adjustment valve - 1 - or electrical wiring connection - 2 - does not sit on the suspension strut mount - 3 -.
- Disengage the locking lever and set the pointer to the 0° position - arrow -, then tighten the locking lever.
- Adjust the mounting bracket so the suspension strut adjustment gauge (V.A.G 1752/19) for the respective side of the vehicle can be bolted to the mounting bracket.
Left Side

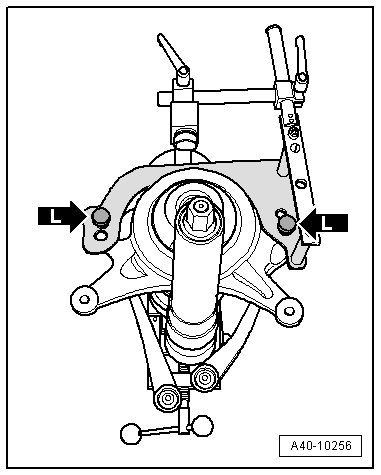

- Bolt adjust gage for suspension strut (V.A.G 1752/19) onto mounting bracket - arrows L -.
Right Side
- Attach the adjust gage for suspension strut (V.A.G 1752/19) to mounting bracket - arrows R -.
- Release the tension in the spring compressor (V.A.G 1752/1) and remove it.
• When releasing the tension, make sure the ends of the spring lie on the spring support stops in the mounting bracket and the lower spring support.
- Check adjustment, repeat procedure if necessary.
Permissible deviation: ±2°.
