Spring Tensioning System (VAS 6274), Converting

Special Tools






Special tools, testers and auxiliary items required

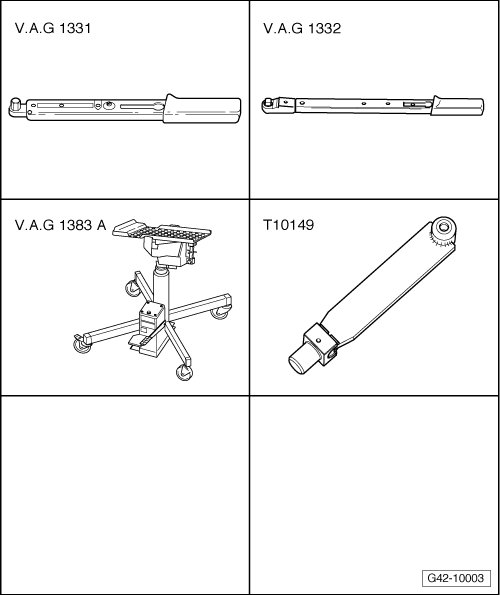

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Torque Wrench 50-200 Nm (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Wheel Hub Support (T10149)

Special tools, testers and auxiliary items required

• Fitting Sleeve (3241/4)






• Assembly Tool (3301)






• Pliers (3340)






• Support Arm Bearing Inst. Tool (3346)

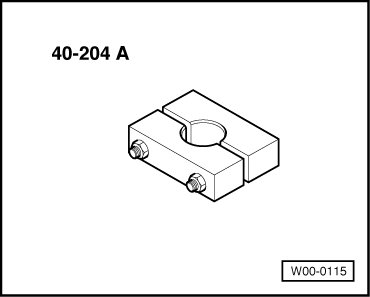

• Press Block (40 - 204 A)

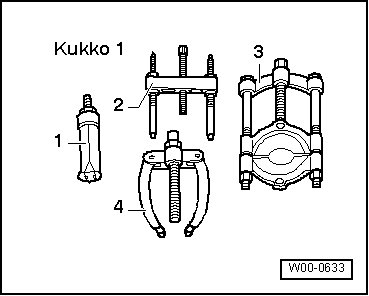

• - 3 - Kukko Puller (15/3 with 17/3)






• Shock Absorber Set (T10001)






• Tensioning Strap (T10038)






• Assembly Tool (T10205)






• Assembly Tool (T10230)






• Assembly Tool (T10263)






• Assembly Tool (T40033)






• Tool Insert (T40183)






• Assembly Tool (T40184)






• Assembly Tool (T40185)






• Assembly Tool (T40186)






• Shop Press (V.A.G 1290 A)

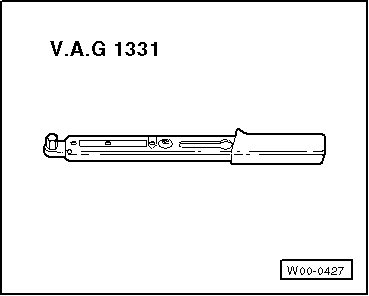

• Torque Wrench 5-50 Nm (V.A.G 1331)






• Torque Wrench 50-200 Nm (V.A.G 1332)






• Engine-/Gearbox Jack (V.A.G 1383 A) with Universal Transmission Support (V.A.G 1359/2)






• Torque Wrench (V.A.G 1410)






• Torque Wrench (V.A.G 1576)






• CV Joint Boot Clamp Tool (V.A.G 1682)

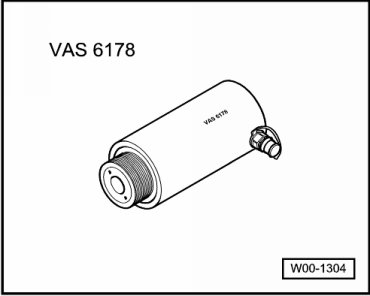

• Hydraulic Press (VAS 6178)






• Pneumatic/Hydraulic Foot Pump (VAS 6179)

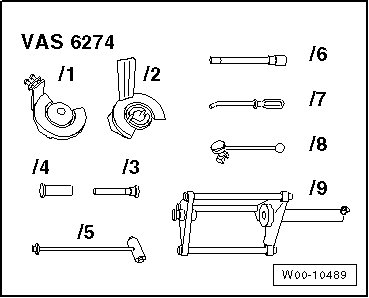

• Spring Tensioning System (VAS 6274)






• Supplementary Set (VAS 6274/10)






• Thrust Plate (VW 401)






• Thrust Plate (VW 402)






• Punch (VW 409)






• Punch (VW 408 A)

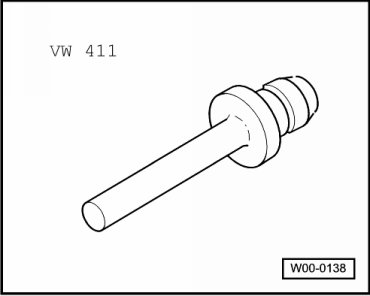

• Punch (VW 411)






• Thrust Disc (VW 412)






• Sleeve-Press Tool (VW 522)






• Grease Cap Puller (VW 637/2)






• Not illustrated:

• Support Arm Bearing Inst.Tool (3346/3)

• Support (T10205/13)

• Pressure Plate (T40184/2)
