Battery Monitoring Control Module (J367)

Battery Monitoring Control Module (J367)

Removing

- Turn off the ignition and remove the ignition key.

Sedan






- Lift the luggage compartment floor and engage it on the body.

- Remove the nut - 1 - and the tool kit cover - 2 -.

- Remove the tool kit mount.

Avant






- Remove the luggage compartment floor - 2 -.

- Remove the nuts - 1 - and the spare tire - 3 -, if applicable.

- Remove the subwoofer, if applicable.

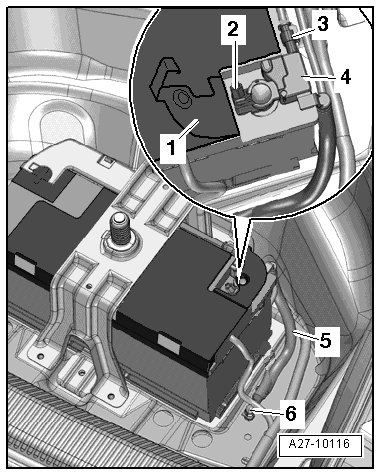

Negative Terminal Cover - Version I






- Pull the cover - 2 - over the negative terminal up slightly - arrow -.

- Loosen the nut several turns and remove the ground cable - 1 - from the battery terminal.

- Disconnect the electrical connector - 3 -.

- Remove the nut - 6 - and ground cable - 5 - with the battery monitoring control module (J367) - 4 -.

Negative Terminal Cover - Version II






- Open the cover - 2 - over the battery negative terminal.

- Loosen the nut several turns and remove the ground cable - 1 - from the battery terminal.

- Disconnect the electrical connector - 3 -.

- Remove the nut - 6 - and ground cable - 5 - with the battery monitoring control module - 4 -.

Installing

• Tightening specifications, refer to one of the following:

Sedan => [ Battery Overview ] Battery Overview, Sedan.

Avant => [ Battery Overview ] Battery Overview, Sedan.

Install in reverse order of removal, observing the following:

- Install the subwoofer, if applicable.

- Connect the battery. Refer to => [ Connecting ] Battery, Disconnecting and Connecting.
