Shift Cable: Description and Operation

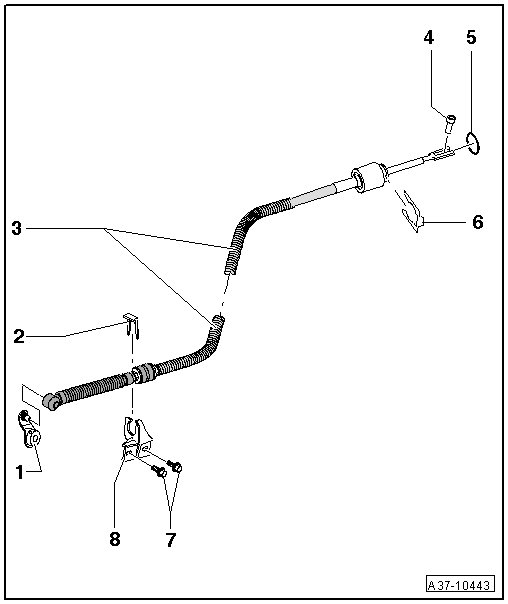

Selector Lever Cable Assembly Overview

• Lubricate the bearing areas and slide surfaces with polycarbamide grease (G 052 142 A2).





1 Selector shaft lever

2 Retaining clip

• For the selector lever cable to bracket.

3 Selector lever cable

• Do not bend or kink.

• Removing and installing, refer to => [ Selector Lever Cable ] Selector Lever Cable.

• In case of a damaged rubber boot, the selector lever cable must be replaced.

• When installing, make sure the rubber sleeve on the transmission side is not twisted.

• Adjusting, refer to => [ Selector Lever Cable Adjusting, from 12.05 ] Procedures.

4 Bolt, 13 Nm

• For selector lever cable adjustment.

5 O-ring

• Replace

6 Retaining clip

• For the selector lever cable to the selector mechanism.

7 Screws - 10 Nm

• For the bracket to the transmission.

8 Bracket, selector lever cable
