Engine Controls - MIL ON/DTCs P0133/P0153/P0139/P0159

01 MIL on (DTC P0133, P0153, P0139, or P0159 for lambda sensor signal too slow)

24 10 54

2023004/3

November 4, 2010.

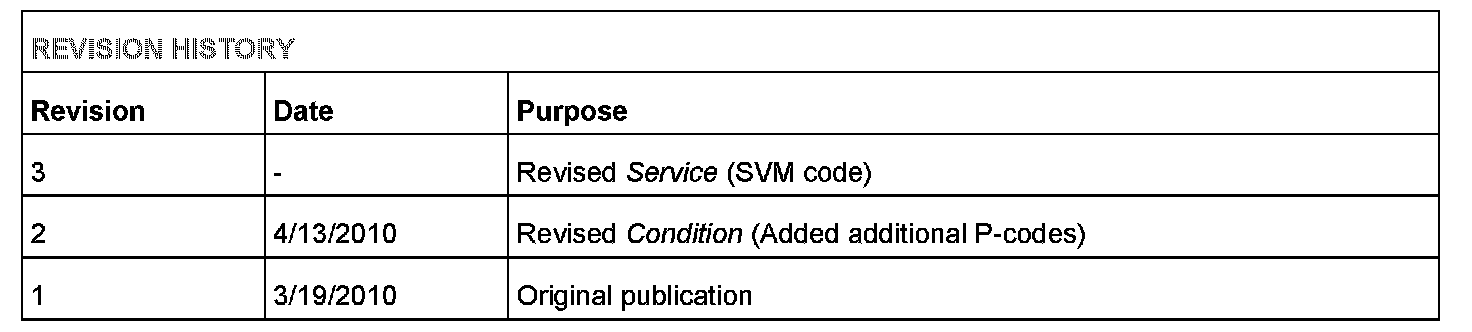

Supersedes Technical Service Bulletin Group 24 number 10-16 dated April 13, 2010 for reasons listed below.

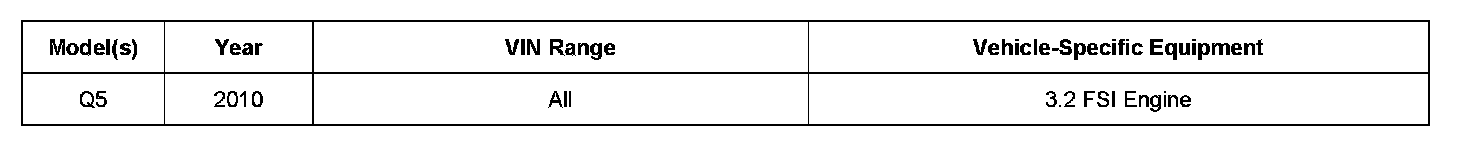

Affected Vehicles





Condition
^ MIL on.

^ The ECM contains one or more of the following DTCs: P0133, P0153, P0139, and/or P0159 (Signal Sensor 1/2 Bank 1/2 too slow).

TECHNICAL BACKGROUND

Software update needed.

PRODUCTION SOLUTION

New software in the control module (J623) addressed the condition.

SERVICE

1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.





2. Update the ECM using the SVM action code as listed in the table above if necessary.

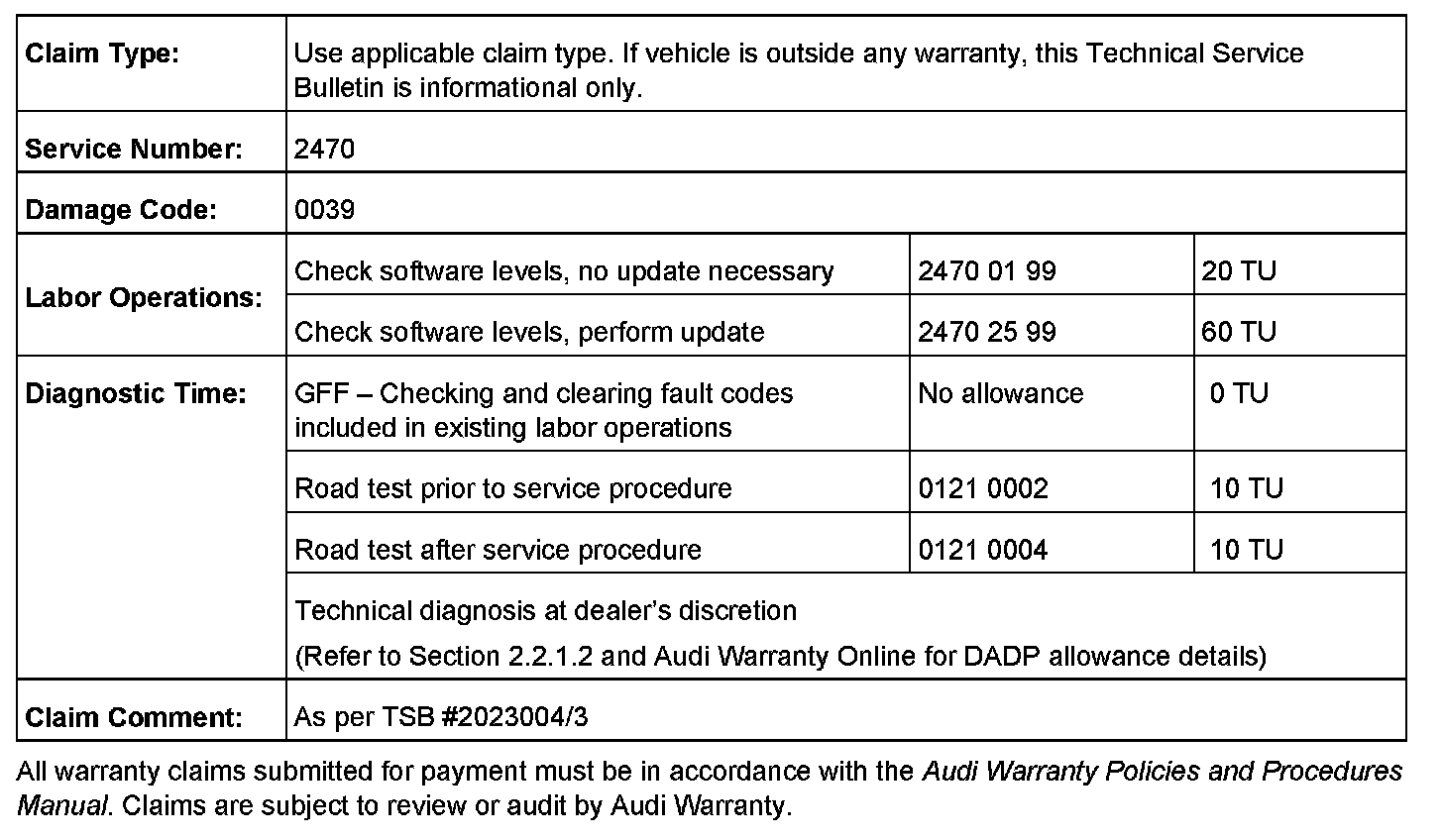

WARRANTY

ADDITIONAL INFORMATION

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.

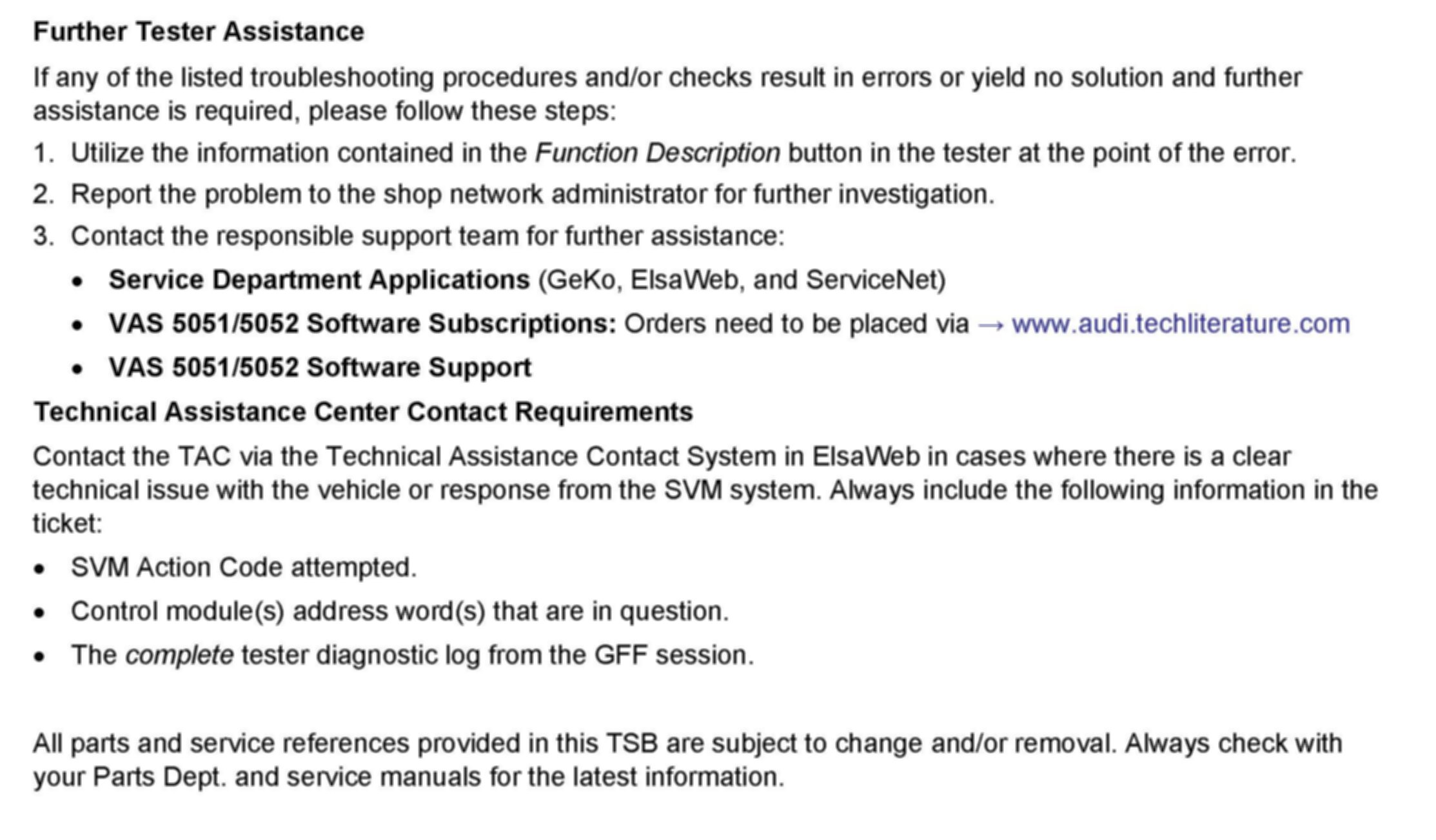

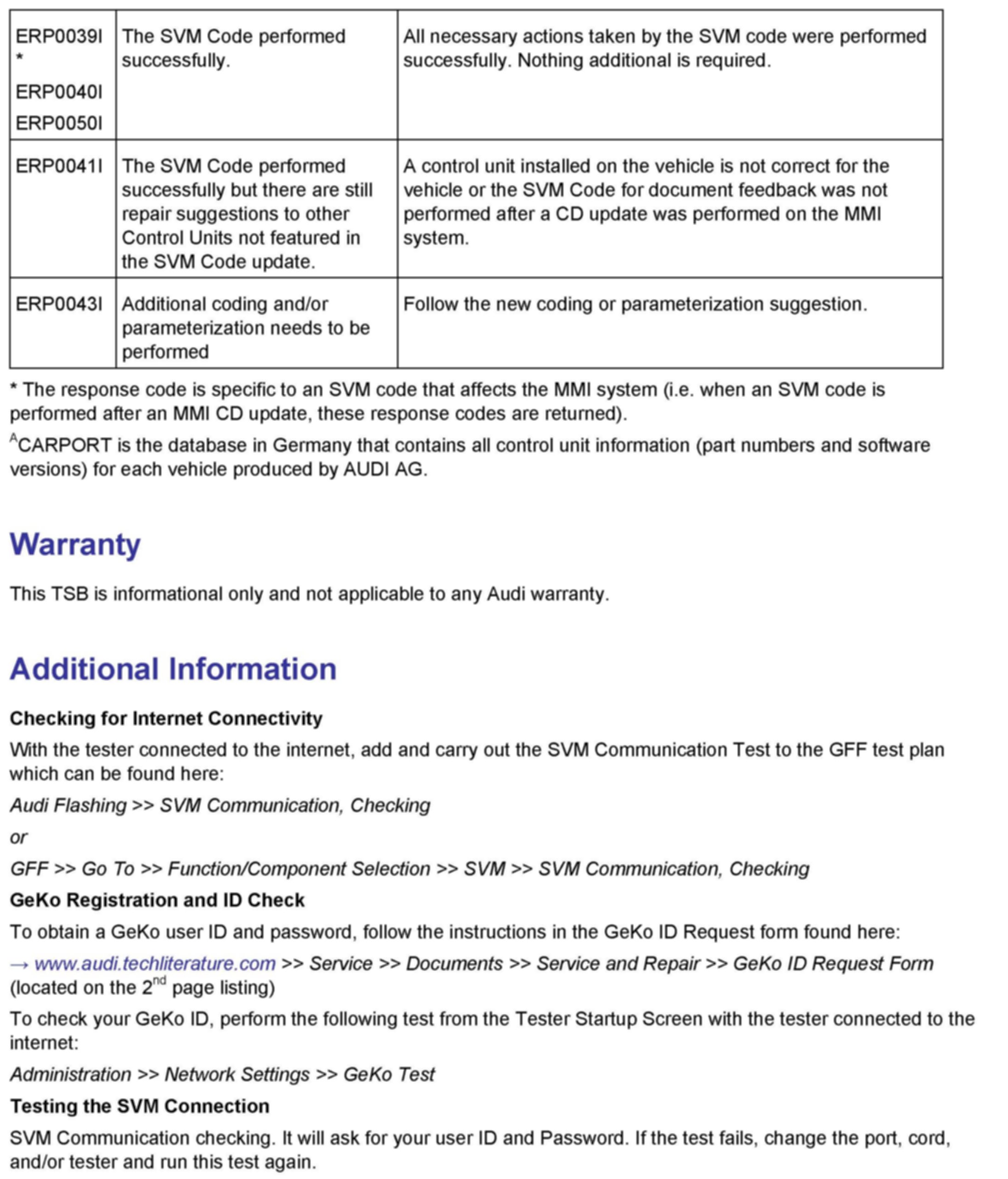

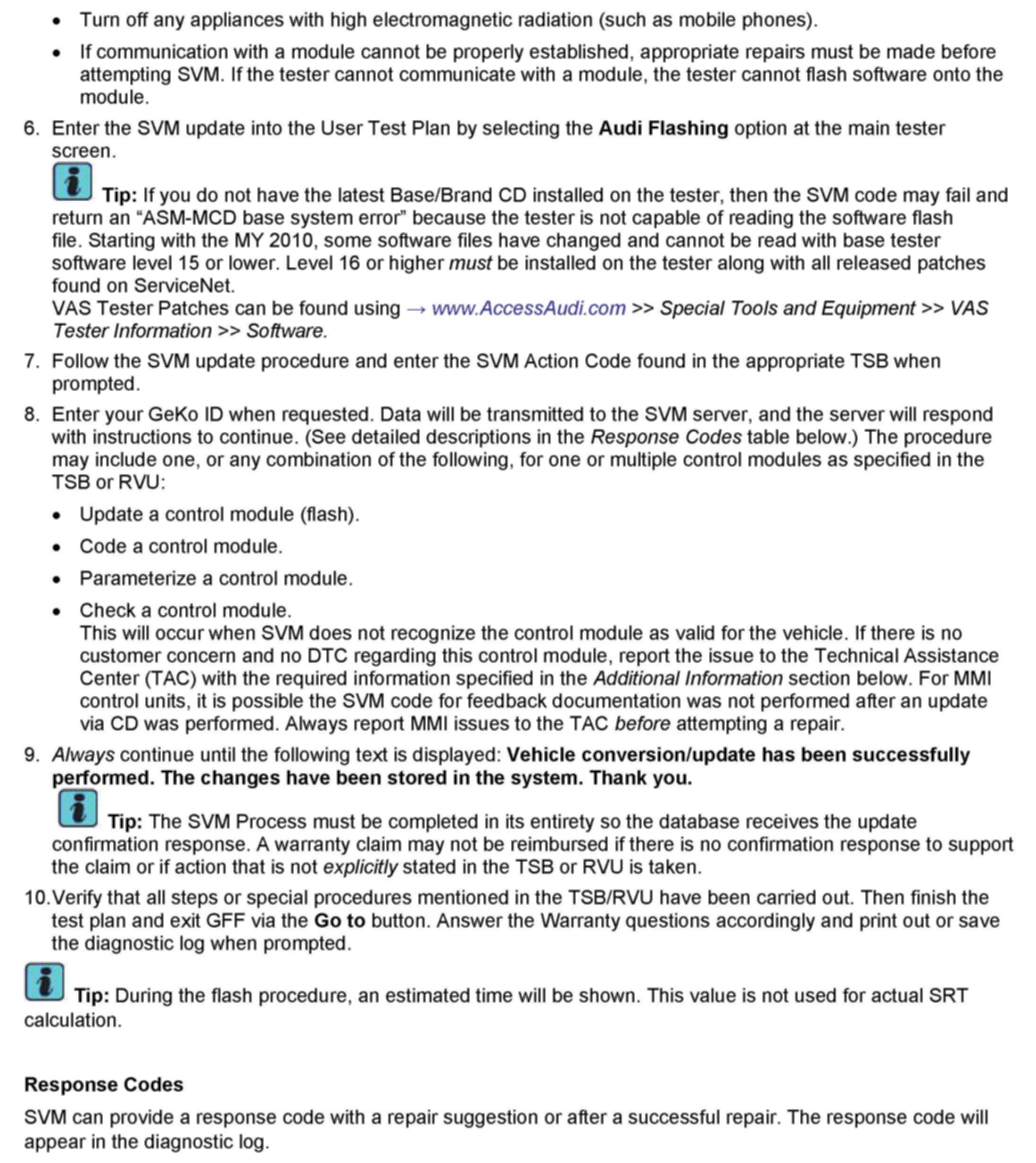

ATTACHMENT

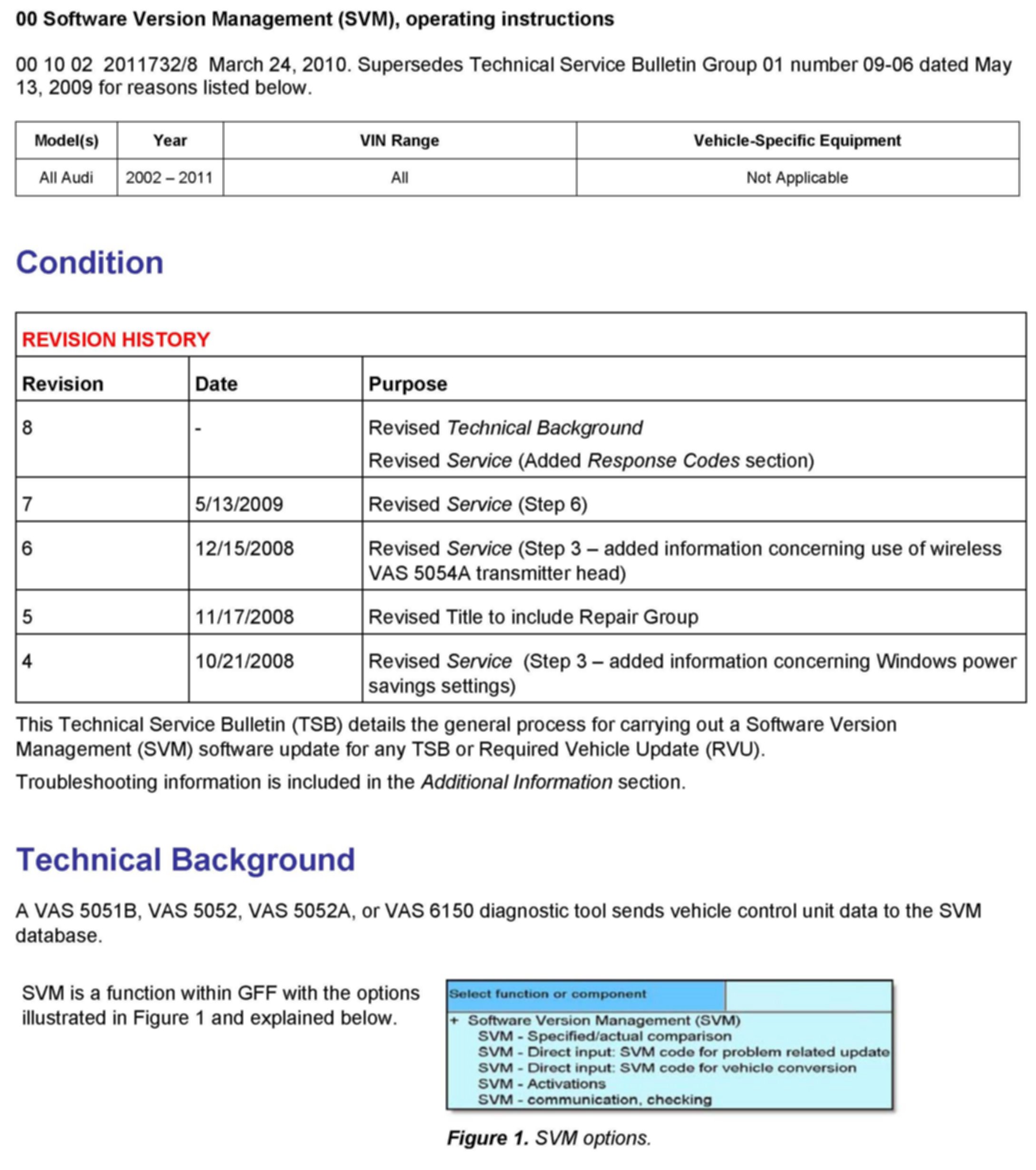

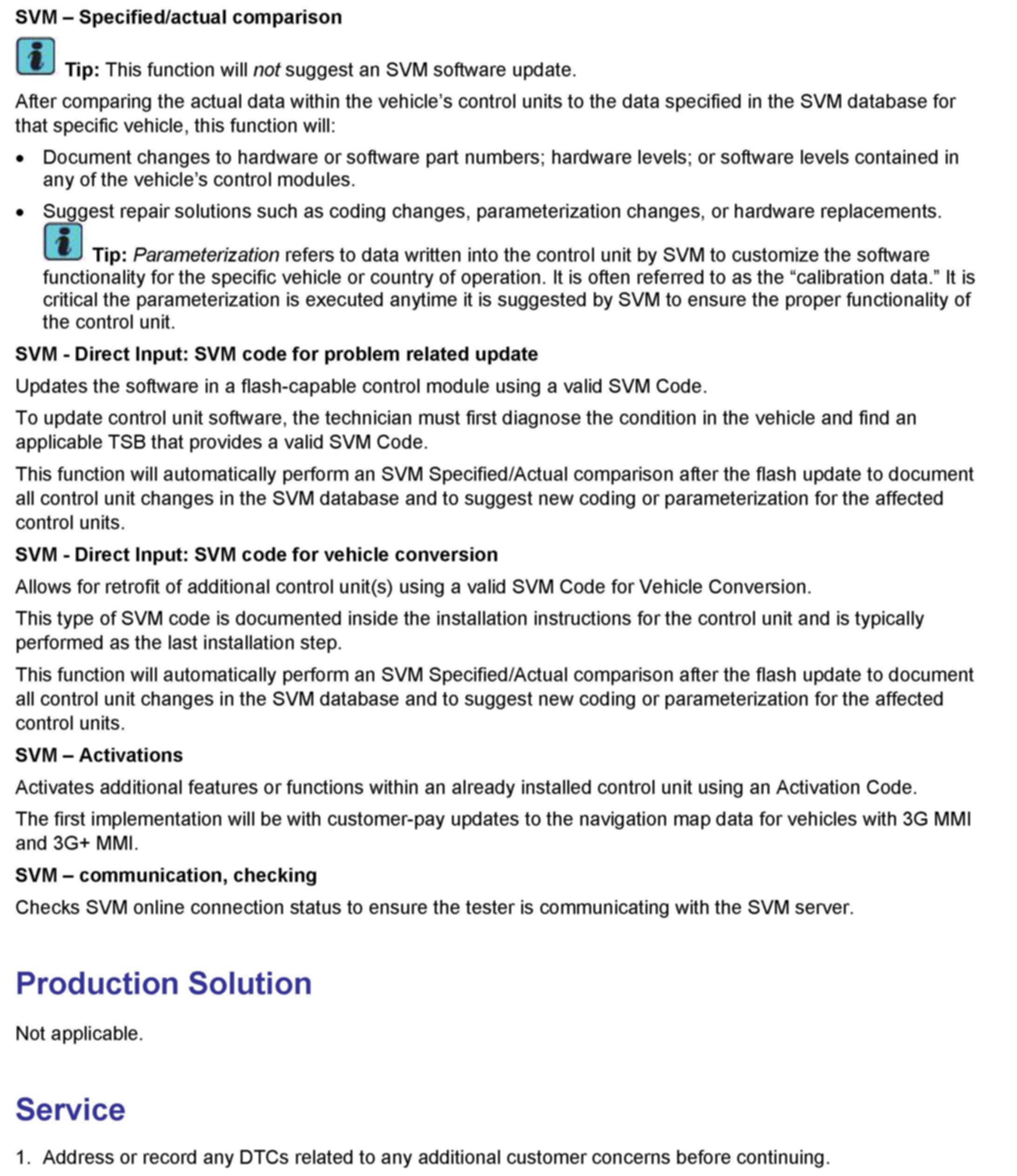

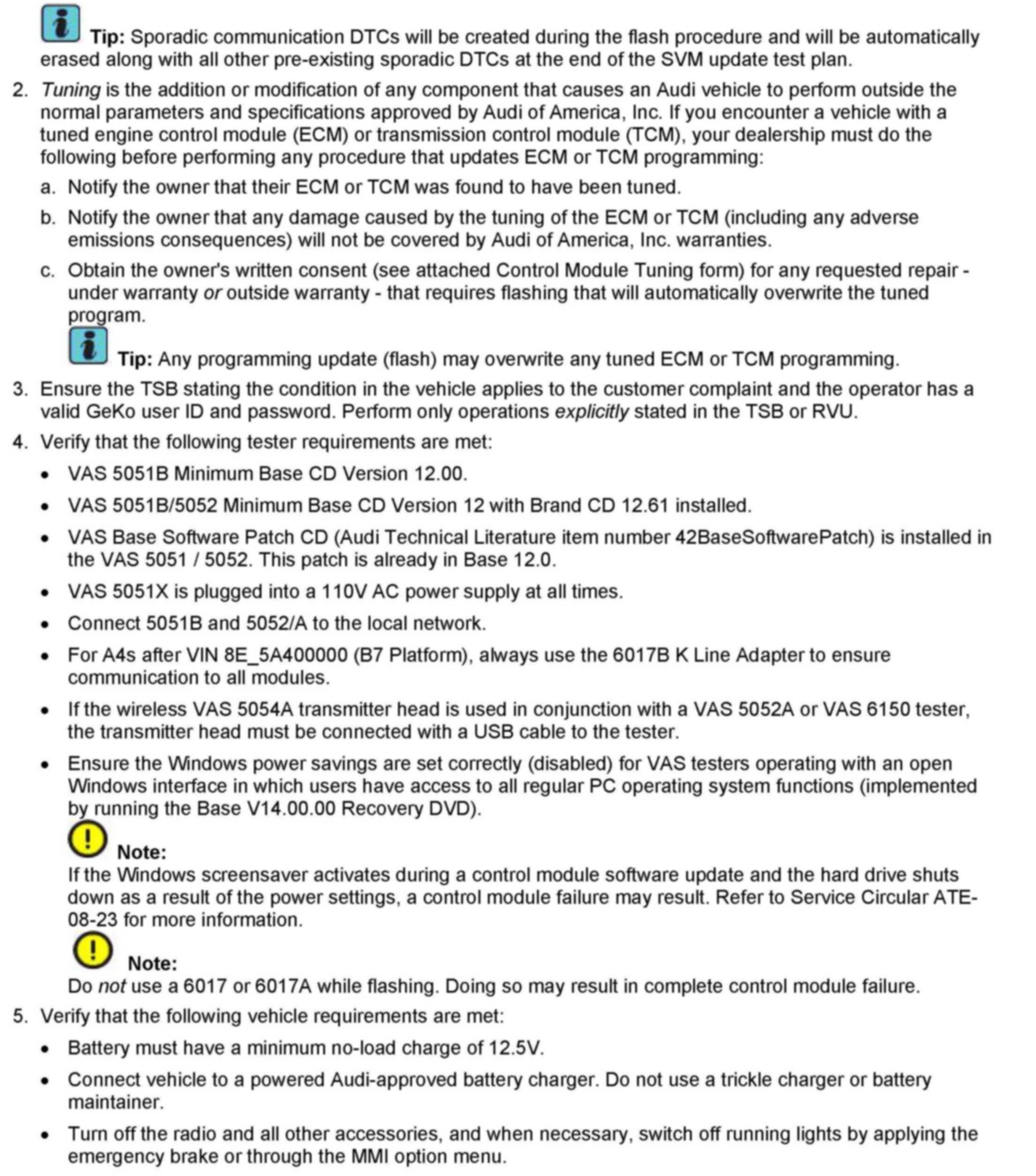

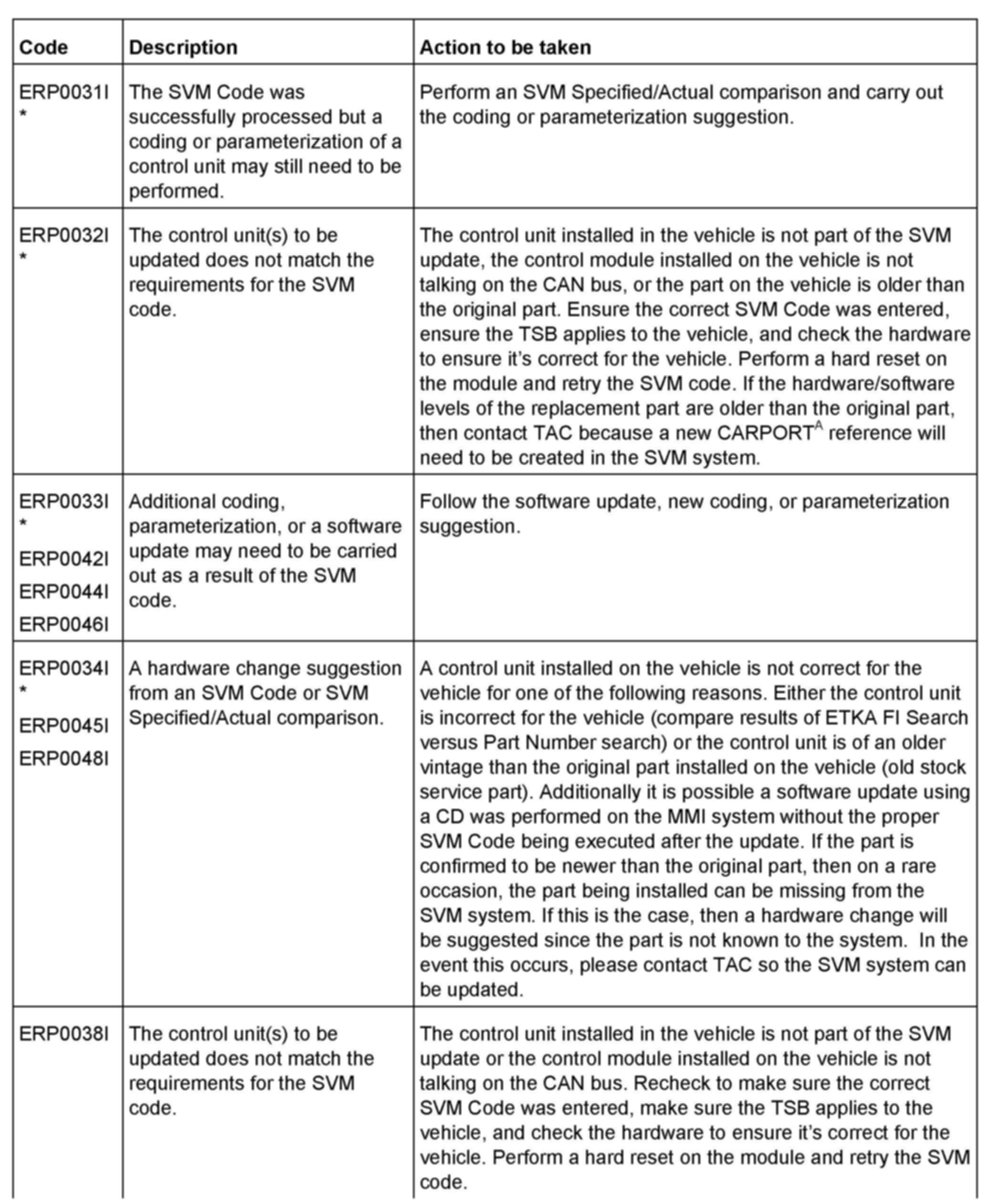

00 Software Version Management (SVM), operating instructions.
