Footrest and Floor Covering Assembly Overview

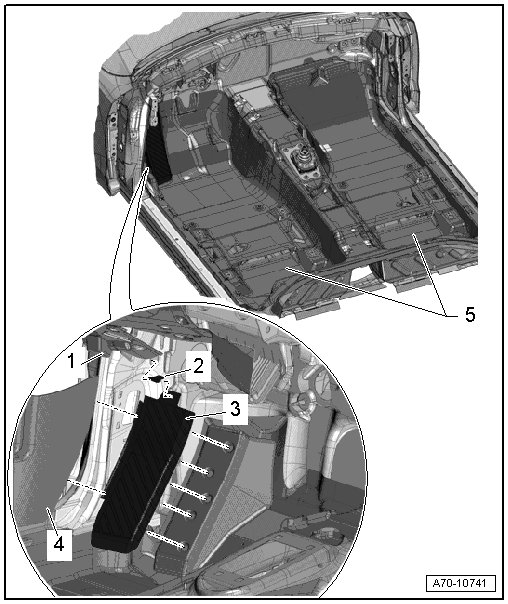

Footrest and Floor Covering Assembly Overview






1 Driver Side Instrument Panel Cover

2 Clips

• Insert in the footrest

3 Footrest

• The footrest is destroyed during removal and must be replaced.

• Removing and installing, refer to => [ Footrest ] Footrest

4 A-Pillar Lower Trim

5 Carpet

• One piece

• Removing and installing, refer to => [ Floor Covering ] Floor Covering
