Locking Motor (V223)

Locking Motor (V223)

Removing






- Remove the convertible top latch motor. Refer to => [ Latch Drive Motor ] Latch Drive Motor

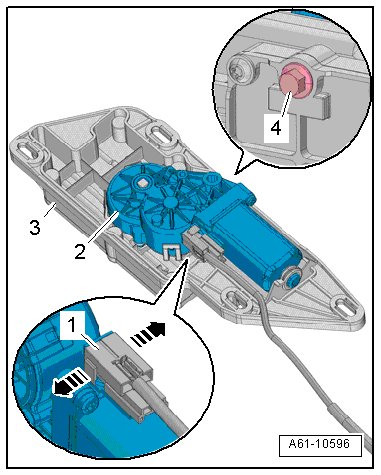

- Remove the bolt - 4 -.

- Remove the drive - 2 - from the convertible top latch drive motor- 3 -.

- Carefully open the tab - arrows - and disconnect the connector - 1 -.

Installation

• Tightening specifications, refer to => [ Latch Overview ] Latch Overview.

Install in reverse order of removal. Note the following:

- Install the convertible top latch drive motor. Refer to => [ Latch Drive Motor ] Latch Drive Motor.
