TV Antenna 2, Through MY 2007

TV Antenna 2, through MY 2007

TV antenna 2/TV antenna 3 is located on the left and right A-pillars.

Removal and installation is same for TV antenna 2 and TV antenna 3.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove left A-pillar trim.

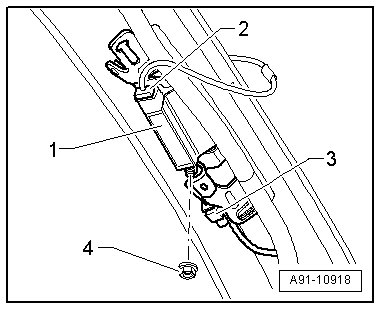

- Remove nut - 4 -.





- Raise TV antenna 2 - 1 - from retaining plate and disconnect connectors - 2 - and - 3 -.

Installing

- Install in reverse order.

Tightening specifications. Refer to => [ Antenna System Assembly Overview ] Antenna System Assembly Overview.
