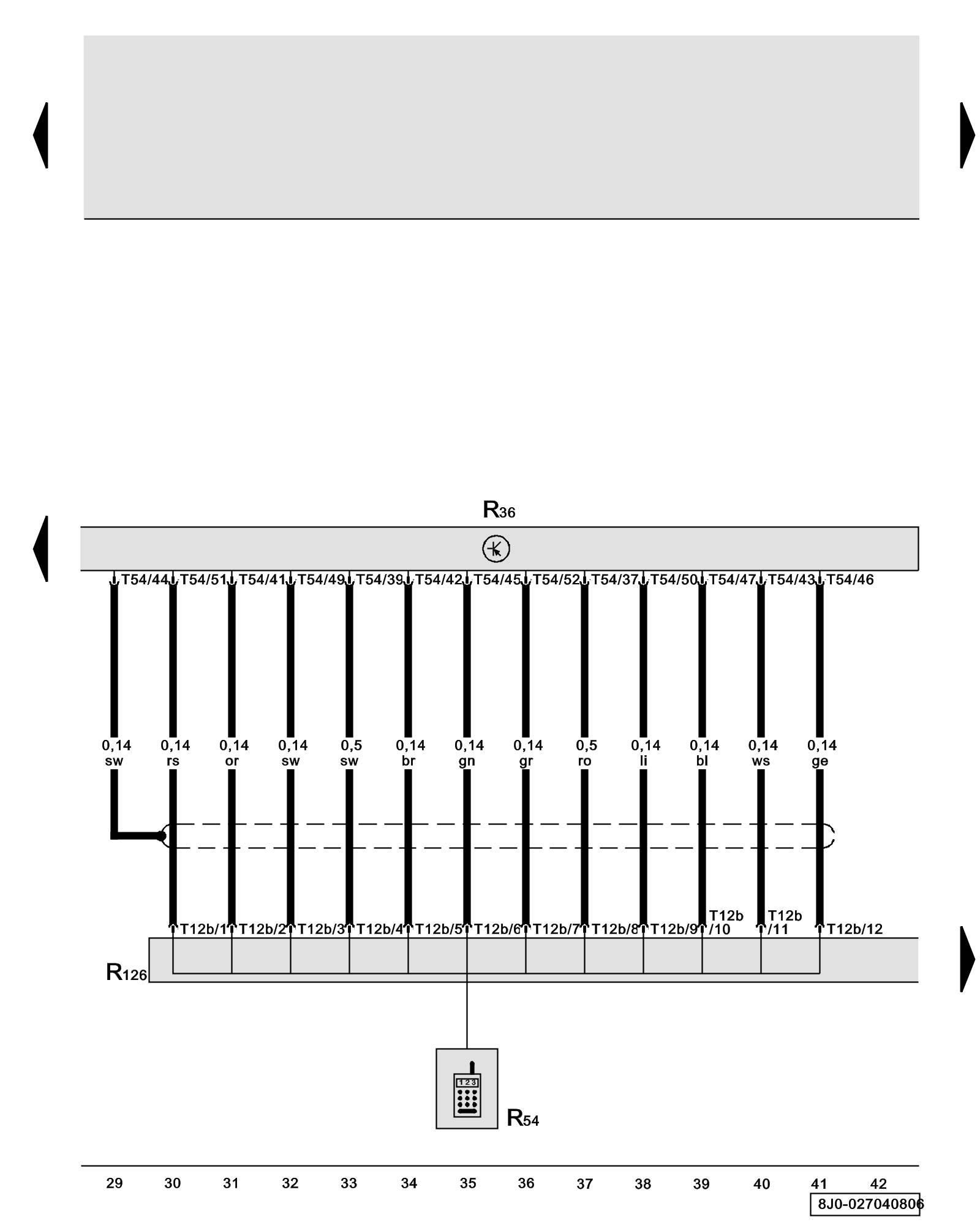

Diagram 27/4 (Tracks 29-42)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Cellular Telephone, Telephone Baseplate





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R36 - Telephone Transceiver Phone System Component Overview

R54 - Cellular Telephone

R126 - Telephone Baseplate Phone System Component Overview

T12b - 12-Pin Connector, black, on telephone baseplate

T54 - 54-Pin Connector (Connector A), on telephone transceiver
