Microphone Unit In Front Roof Module







Microphone Unit in Front Roof Module

A maximum of two microphones are installed in the front interior light. They can only be replaced completely.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove front interior light.

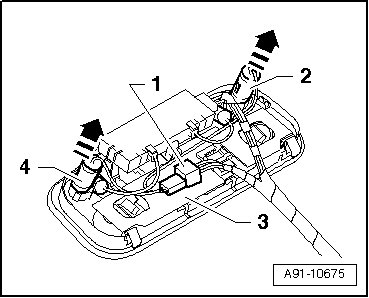

- Disconnect electrical connector - 1 -.





- Pry microphones - 2 - and - 4 - out of front interior light - 3 - - arrows -.

Installing

- Install in reverse order.
