Hood Gap Dimensions

Hood Gap Dimensions

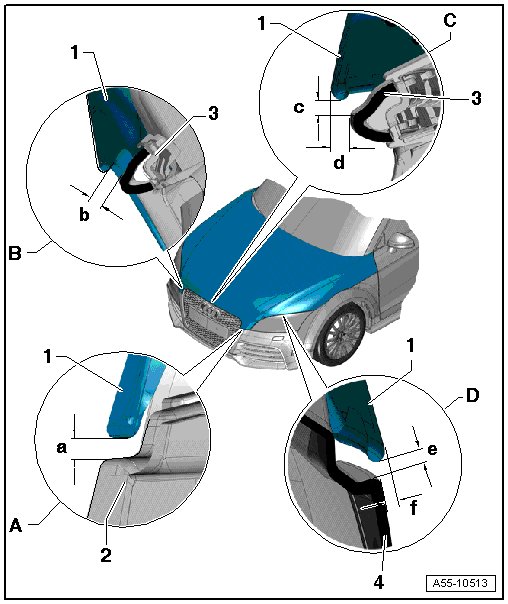

Hood Gap Dimensions with Respect To Radiator Grille, Bumper, Headlamp






A - Hood to bumper

• Gap dimension- a - = 4.5 +/- 0.5 mm

- 1 - hood

- 2 - bumper

• Adjusting, refer to => [ Hood, Adjusting ] Hood, Adjusting

B - Hood to radiator grille side

• Gap dimension - b - from top to bottom = 4.0 to 2.5 +/- 0.5 mm

- 1 - hood

- 3 - Radiator grille

• Adjusting, refer to => [ Hood, Adjusting ] Hood, Adjusting

C - Hood to radiator grille

• Gap dimension - c - = 4.4 +/- 0.5 mm

• Projection - d - = 1.5 +/- 0.5 mm

- 1 - hood

- 3 - Radiator grille

• Adjusting, refer to => [ Hood, Adjusting ] Hood, Adjusting

D - Hood to headlamp

• Gap dimension - e - from top to bottom = 3.0 to 1.6 +/- 0.5 mm

• Projection - f - = 3.0 +/- 0.5 mm

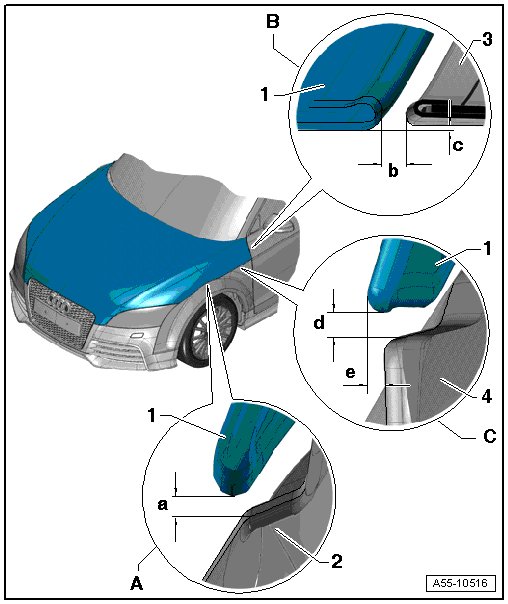

Gap Dimensions of Hood to Fender, Front Door






A - Hood to fender - headlamp area

• Gap dimension- a - = 2.5 +/- 0.5 mm

- 1 - hood

- 2 - fender - front area

• Adjusting, refer to => [ Hood, Adjusting ] Hood, Adjusting

B - Hood to front door

• Gap dimension - b - = 3.5 +/- 0.5 mm

• Projection - c - = 0.0 + 1.0 mm

- 1 - hood

- 3 - Front door

• Adjusting, refer to => [ Hood, Adjusting ] Hood, Adjusting

C - Hood to fender - A-pillar area

• Gap dimension - d - = 3.5 +/- 0.5 mm

• Projection - e - = 2.0 +/- 0.5 mm

- 1 - hood

- 4 - fender - rear area

• Adjusting, refer to => [ Hood, Adjusting ] Hood, Adjusting
