Rear Lid







Rear Lid

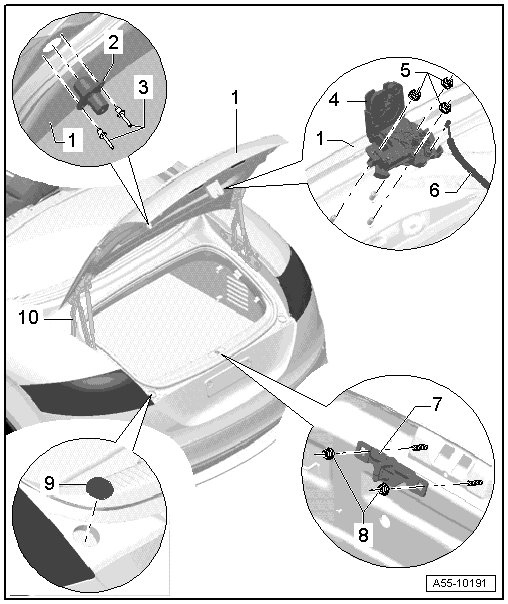

1 Rear lid

A second person is needed during removal and installation to support and hold the rear lid.

Removing

- Remove the rear lid trim panel.

- Disconnect the electrical wires and remove from the lid.

- Remove left and right gas-filled struts. Refer to => [ Gas-filled Strut ] Gas-filled Strut.

- Remove the bolts at the connection for the rear lid hinge/rear lid, refer to => [ Rear Lid Hinge ] Rear Lid Hinge.

- Remove the rear lid.

Installation: in reverse order.

Adjusting:

The gas damper must be attached before installing a new rear lid.

- Perform height and length adjustments for the upper rear lid above the rear lid hinge.

- Perform lower height adjustment over lid lock.

- Align the lid so it is centered according to the gap dimensions => [ Gap Dimensions ] Rear Lid, Adjusting.

- Adjust stop buffers => [ (Item 2) Rubber stop ].

Rear Lid Seal, Removing and Installing, refer to => [ Rear Lid Seal ] Rear Lid Seal.

2 Rubber stop

If lid is adjusted correctly, stop buffers must lightly contact body when lid is closed.

Adjusting => [ Removing ] Stop Buffer.

3 Pop rivet

To remove, drill out rivet head and drive out rivet shaft.

4 Rear lid lock

To remove, remove combi-bolts and disengage cable.

5 Nuts

21 Nm

6 Cable for emergency release

7 Striker

Adjusting:

- Tighten combi-bolts => [ (Item 5) Nuts ] by hand (it must still be possible to slide striker).

- Carefully close the rear lid so that it is flush with the side panels.

- Carefully open lid and tighten bolts => [ (Item 5) Nuts ].

8 Nuts

21 Nm

9 Protective film

Self-adhesive.

Remove protective paper before applying.

10 Hood hinge

Removing and installing, refer to => [ Rear Lid Hinge ] Rear Lid Hinge
