Removing

- Remove left and right seats. Refer to => [ Front Seat ] Front Seat.

- Remove driver side instrument panel cover. Refer to => [ Driver Side Instrument Panel Cover ] Driver Side Instrument Panel Cover.

- Remove accelerator pedal module.

- Completely remove center console. Refer to => [ Rear Center Console ] Rear Center Console.

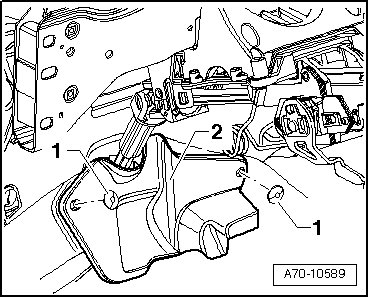

- Remove the push knobs - 1 - and remove the cover for the steering column universal joint.






- Remove the lower left and right A-pillar trim. Refer to => [ Lower A-Pillar Trim ] Lower A-pillar Trim.

- Remove the left and right rear panel trim panel sideways. Refer to => [ Side Rear Panel Trim Panel ] Side Rear Panel Trim Panel.

- Remove left and right sill panel strip. Refer to => [ Sill Panel Assembly Overview ] Sill Panel Assembly Overview.

- Remove the footrest cover. Refer to => [ Foot Rest Cover ] Foot Rest Cover.

- Remove the seat belt from the outer belt end fitting. Refer to => [ Outer Belt End Fitting ] Outer Belt End Fitting.

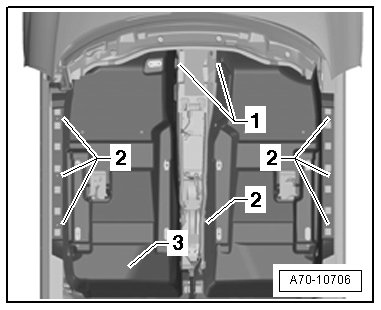

- Remove the expanding clips - 2 - (quantity: 8).






- Detach the carpet from the brackets - 1 -.

- Disengage wiring harness from retainers.

- Pull the carpet - 3 - toward the rear.

• Make sure the floor covering does not tear at the openings.

- Fold the carpet lengthwise, guide it under the wiring harness and remove through a door.

Installation

Install in reverse order of removal. Note the following:

- Fold the new floor mat lengthwise and place in vehicle.

- Slide the carpet all the way forward until it matches up with holes for the accelerator pedal, the foot rest and the cover for the steering column universal joint.

- Attach the carpet - 3 - to the brackets - 1 -.






- Install the expanding clips - 2 - (quantity: 8)
