Hydraulic Pump Oil Level, Checking

Hydraulic Pump Oil Level, Checking

To check oil level, convertible top must be stored in convertible top compartment.

- Hydraulic pump removed and placed on a level surface in luggage compartment.

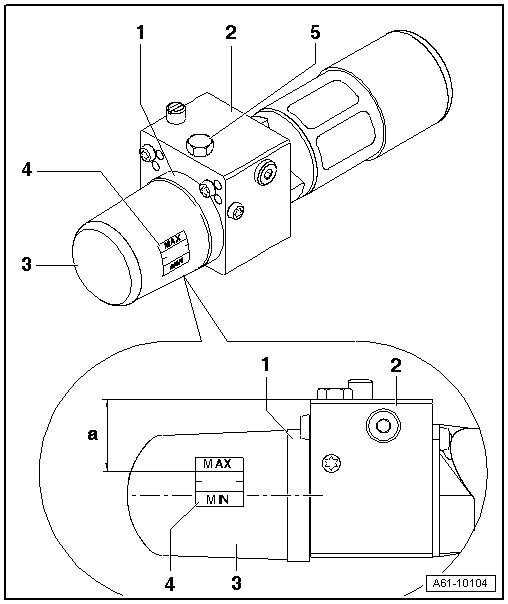

- Oil level must be between both markings - 4 -, fill oil if necessary.

- Remove filler plug - 5 -






- Fill with oil until the level is between Min and Max markings.

- Install filler plug and tighten to 5 Nm.

- Operate convertible top electrically several times and check oil level again.
