Convertible Top Cover Retaining Strips

Convertible Top Cover Retaining Strips

• Only on vehicles with electro-hydraulic convertible top.

• On vehicles with manual convertible top, plastic retaining rails must be removed from rails.

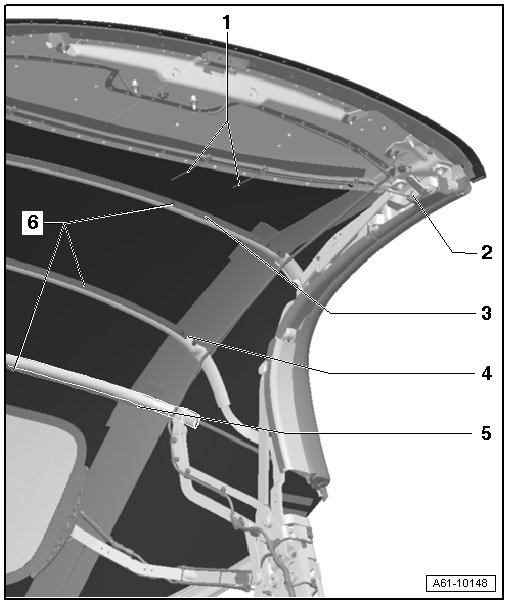

1 Guide cable

• To remove cover, remove guide cable on both sides from roof guide 2 => [ Guide Cable Mount on Roof Guide ] Guide Cable Mount on Roof Guide.

2 Bolt

• 2.5 Nm

3 Guide retaining strip 1

• Retaining strips for rails 1, 2 and 3 are removed to remove cover.

4 Guide retaining strip 2

5 Guide retaining strip 3

6 Bolt

• 2 Nm
