Front Convertible Top Compartment Trim

Front Convertible Top Compartment Trim

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)

Removing

- Remove rear wall cover.

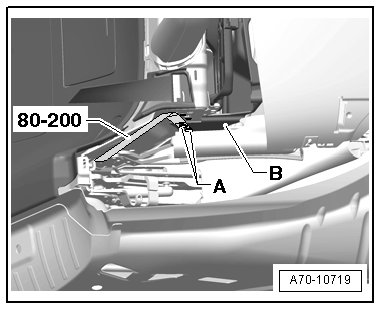

- Position convertible top or linkage removal flaps so that expanding clips - A - can be unclipped with (80 - 200).






• Secure expanding clips - A - against falling.

- Unclip remaining expanding clips and remove front convertible top compartment trim - B -.

Installation

Install in reverse order of removal.
