Rear Window Release Cable

Rear Window Release Cable

Removing

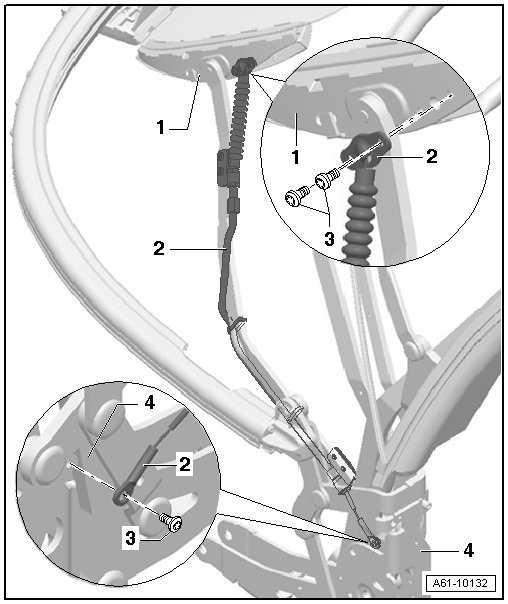

1 Rear Window

• No replacement part

2 Rear window release

- When removing convertible top cover, disconnect release at upper rear window.

• Reinstall the same number of cable ties and in the same places as before removal.

• On vehicles where threaded cable clips are used, the wiring and the release should be routed accordingly in the clips.

3 Bolt

• 2 Nm

4 Main bearing

Headliner, installing

- Install in reverse order of removal.
