Front Seat Backrest Stop Switches E69 and E70 Assembly Overview

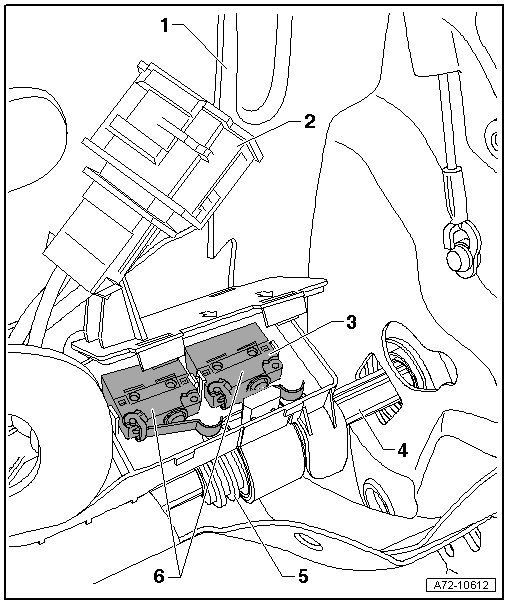

Front Seat Backrest Stop Switches E69 and E70 Assembly Overview






1 Backrest frame

2 Stop switch coupling

3 Housing

• For driver backrest stop switch (E69) or front passenger backrest stop switch (E70)

Housing with adjusting element => [ (Item 5) Actuator ] must not be separated from shaft => [ (Item 4) Shaft ] because end positions cannot be found again.

4 Shaft

Do not remove shaft from housing with adjusting element.

5 Actuator

• For driver backrest stop switch (E69) or front passenger backrest stop switch (E70)

• Must not be removed from shaft => [ (Item 4) Shaft ]

Housing with adjusting element => [ (Item 4) Shaft ] must not be separated from shaft because end positions cannot be found again.

6 Driver Backrest Stop Switch (E69) or Front Passenger Backrest Stop Switch (E70)

• Removing and Installing, refer to => [ Front Seat Backrest Stop Switches E69 and E70 ] Front Seat Backrest Stop Switches E69 and E70
