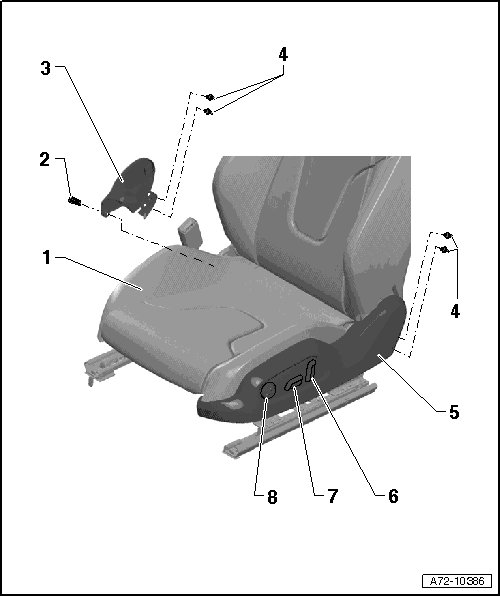

Sill and Tunnel Side Trim Assembly Overview

Sill and Tunnel Side Trim Assembly Overview






1 Front seat

2 Bolt

• 2.5 Nm

3 Tunnel side trim

• Can only be replaced with seat removed

• Removing and Installing, refer to => [ Tunnel Side Trim ] Tunnel Side Trim

4 Expanding rivet

• Quantity: 4

5 Sill-side trim

• Can be replaced with seat installed

• Removing and Installing, refer to => [ Sill Side Trim ] Sill Side Trim

6 Actuator

• For Driver Backrest Adjustment Switch (E96) or Passenger Backrest Adjustment Switch (E98)

• Assembly Overview, refer to => [ Seat and Backrest Adjustment Actuator Assembly Overview ] Seat and Backrest Adjustment Actuator Assembly Overview

• The switch (E363) , (E222) , (E364) or switch or button (E64) , (E334) and (E365) => [ (Item 7) Actuator ] as well as switch (E96) or (E98) are allocated to the same housing.

7 Actuator

• for driver seat forward/back adjustment switch (E363) or front passenger seat forward/back adjustment switch (E64)

• for driver seat angle adjustment switch (E222) or front passenger seat angle adjustment button (E334)

• for driver seat height adjustment switch (E364) or front passenger seat height adjustment switch (E365)

• Assembly Overview, refer to => [ Seat and Backrest Adjustment Actuator Assembly Overview ] Seat and Backrest Adjustment Actuator Assembly Overview

• The switch (E363) , (E222) , (E364) or the switch or button (E64) , (E334) and (E365) as well as the switch (E96) or (E98) are allocated to the same housing => [ (Item 6) Actuator ].

8 Driver seat lumbar support adjustment switch (E176) or front passenger seat lumbar support adjustment switch (E177)

• Assembly Overview, refer to => [ Seat and Backrest Adjustment Actuator Assembly Overview ] Seat and Backrest Adjustment Actuator Assembly Overview
