Seat Height Adjustment Handle

Seat Height Adjustment Handle

Removing






- Pull seat height adjustment handle up and hold in this position.

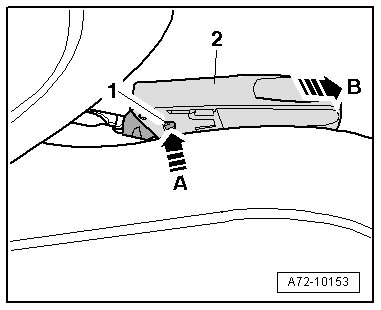

- Using a narrow screwdriver, press clips - 1 - inward - arrow A - and remove seat height adjustment handle - 2 - from lever - arrow B -.

Installation






Install in reverse order of removal. Note the following:

- Make sure the clip springs - 2 - (quantity: 2) - 3 - are positioned on outside of lever - 1 -.
