Seat Forward/Back Adjustment Handle

Seat Forward/Back Adjustment Handle

Removing

• The seat fore and aft adjustment handle cannot be removed without destroying it.

- Move the front seat all the way forward.

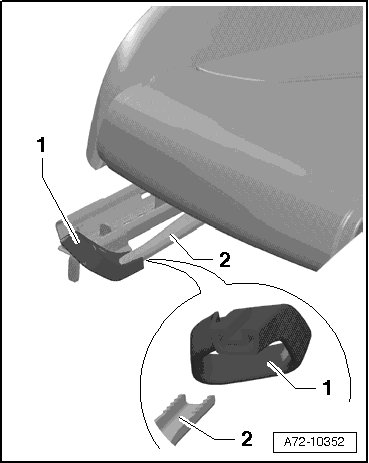

- Remove the seat forward/back adjustment handle - 1 - from its mount - 2 - using a rubber or plastic mallet.






• The unit is shown rotated 180°.

Installation

- Push the seat forward/back adjustment handle back onto its mount.

- Hit the seat forward/back adjustment handle all the way back on with a rubber hammer.

• Be careful not to damage the handle when hitting it with the rubber hammer.
