Storage Compartment

Storage Compartment

• The following describes the removing and installing the storage compartment on a power seat. Removal and installation on a mechanically adjustable seat is the same.

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove the front seat:

• with mechanical adjustment, refer to => [ Front Seat ] Front Seat.

• with electrical adjustment, refer to => [ Front Seat ] Front Seat.

- Attach the front seat to the fixture for seat repair (VAS 6136). Refer to => [ Installing Front Seat On VAS 6136 ] Installing Front Seat on VAS 6136.

- Open storage compartment.

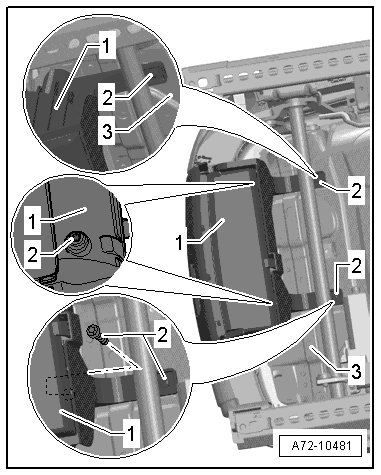

- Remove bolts - 2 - (quantity: 4).






• For illustrative purposes, the storage compartment is shown closed in the illustration.

- Remove entire storage compartment - 1 - from front seat - 3 -.

Installation

Install in reverse order of removal. Note the following:

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

• Make sure the connectors are installed all the way in and are secure.

- Switch on ignition.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect battery ground cable with ignition switched on.

- If Airbag Malfunction Indicator Lamp (MIL) (K75) indicates a fault after installation, DTC memory must be checked, deleted and checked again.

For the correct tightening specifications, refer to => [ Storage Compartment Assembly Overview ] Storage Compartment Assembly Overview
