Seat Frame

Seat Frame

Special tools, testers and auxiliary items required

• Upholstery clip pliers (V.A.G 1634)






Removing






- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

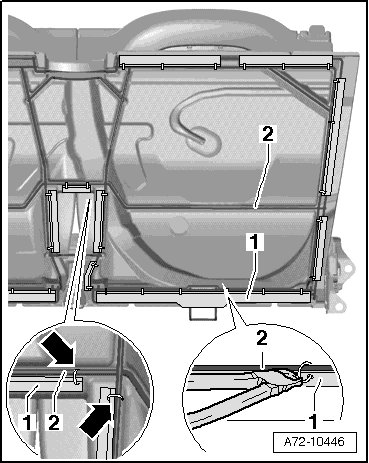

- Cut the upholstery clips - 2 -.

- Remove cover with upholstery - 1 - from seat frame - 2 -.

Installation

Install in reverse order of removal. Note the following:

Ends of upholstery clips must face in direction of upholstery after installing and must be bent correctly. Otherwise, there is a risk of injury.

- Use new upholstery clips.

- Close wire clips with upholstery clip pliers (V.A.G 1634).

- Place the upholstery clips in their original locations.
