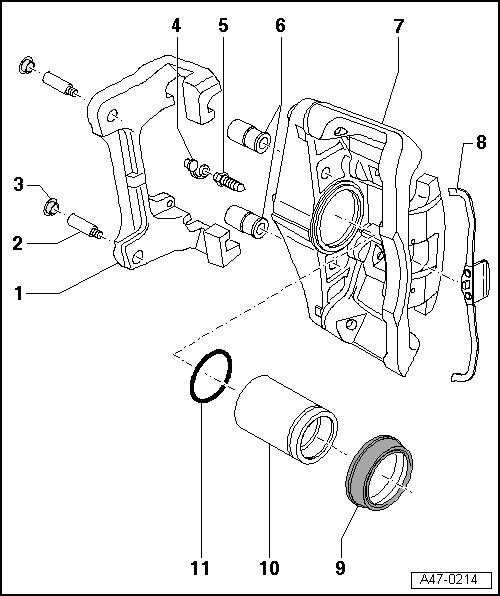

Front Brake Caliper Assembly Overview, FNRG57

Front Brake Caliper Assembly Overview, FNRG57






1 - Brake Carrier

• Bolt to brake caliper housing.

2 - Guide Pins

• 30 Nm

3 - Caps

• Insert in bushing.

4 - Protective Cap

• Push onto bleeder valve.

5 - Bleeder Valve

• Apply a thin coat of lithium grease (G 052 150 A2) to the threads before screwing in.

• 15 Nm

6 - Bushing

• Insert in brake caliper housing.

7 - Brake Caliper Housing

• Brake caliper with a balance weight, refer to => [ Damper on Front Brake Caliper Assembly Overview ] Damper on Front Brake Caliper Assembly Overview.

8 - Retaining Spring

• Observe correct installed position.

• Hook in at both brake caliper housing studs and at the outer brake pad retaining spring.

9 - Protective Cap

• Do not damage when installing piston.

• Coat with lithium grease (G 052 150 A2).

10 - Pistons

• Apply thin coat of lithium grease (G 052 150 A2) to piston beforehand.

11 - Seal

• Coat with lithium grease (G 052 150 A2).
