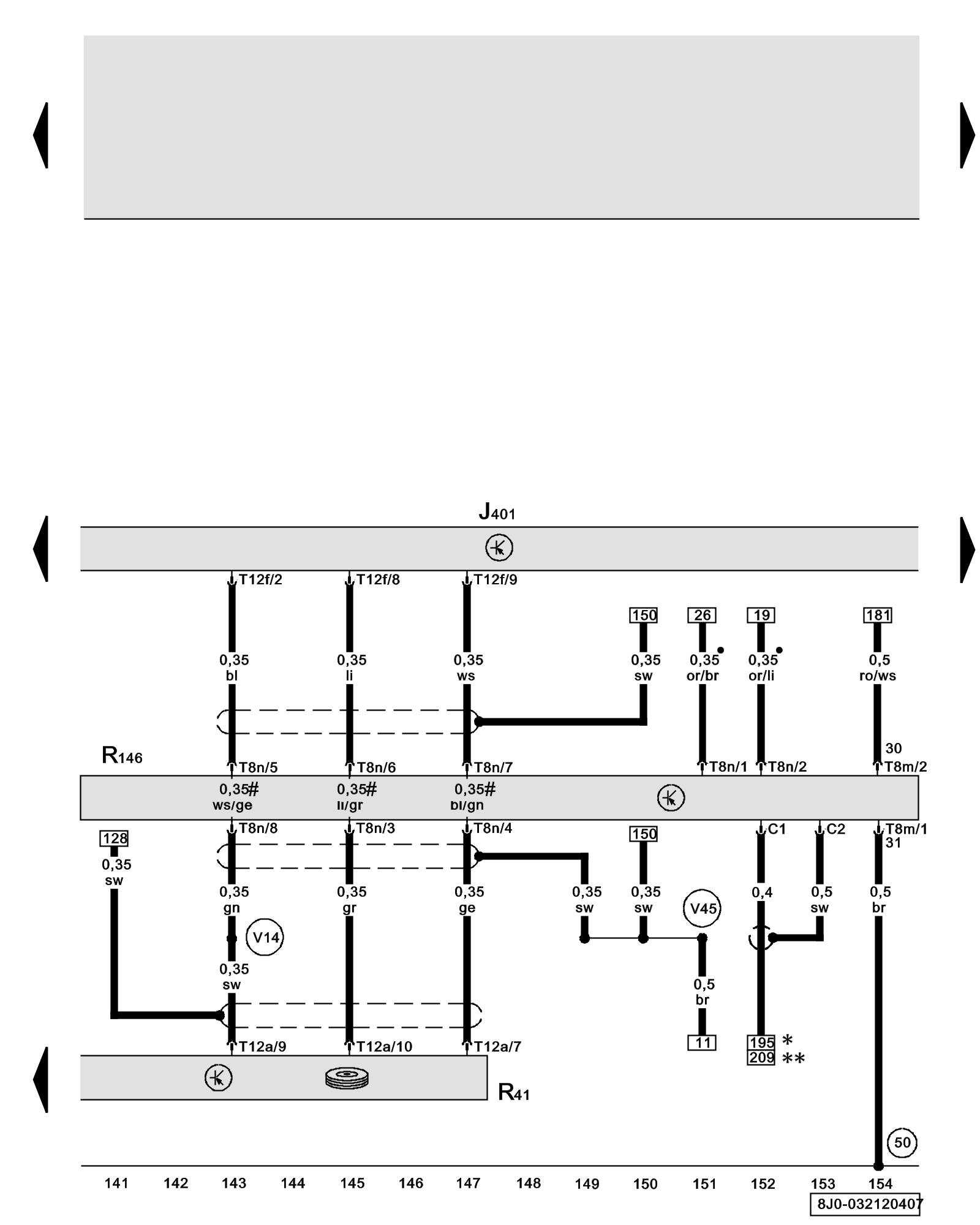

Diagram 32/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Navigation System Control Module with CD Drive, CD Changer, Satellite Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Instrument Panel Wiring Harness Routing

R41 - CD Changer Instrument Panel Wiring Harness Routing

R146 - Satellite Radio Component Locations

T8m - 8-Pin Connector, black (Connector A), on satellite radio

T8n - 8-Pin Connector, black (Connector B), on satellite radio

T12a - 12-Pin Connector, black, on CD changer

T12f - 12-Pin Connector, blue, radio connector B

(50) - Ground Connection (in luggage compartment, left)

(V14) - Connection (shielding) (in CD-changer wiring harness)

(V45) - Connection 2 (shielding) (in CD-changer wiring harness)

^ - CAN-Bus (data wire)

* - Coupe

** - Roadster

# - Models without satellite radio bridged by mating plug

Previous Diagram 32/11 (Tracks 127-140)

Next Diagram 32/13 (Tracks 155-168)
