Instrument Panel Vent

Instrument Panel Vent

Special tools, testers and auxiliary items required

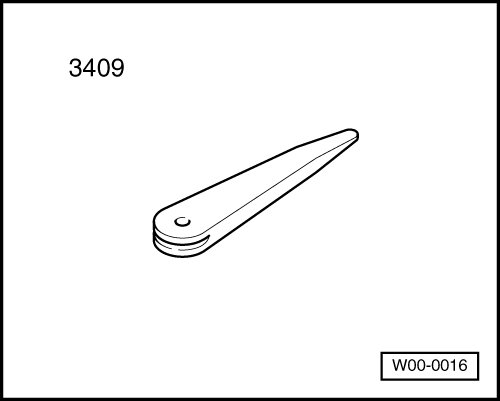

• Trim removal wedge (3409)






Removing






• Removal and installation on middle and sides is the same.

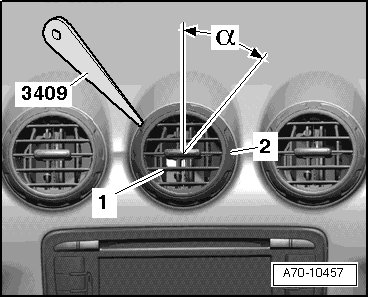

- Turn rotary ring - 2 - from left stop out - alpha - = 45° to the right.

- Using Trim Removal Wedge (3409) , pry instrument panel vent - 1 - from instrument panel.

- Remove instrument panel vent from instrument panel by hand.

Installation






Install in reverse order of removal. Note the following:

- Rotary ring must be - alpha - = 45° to the right.

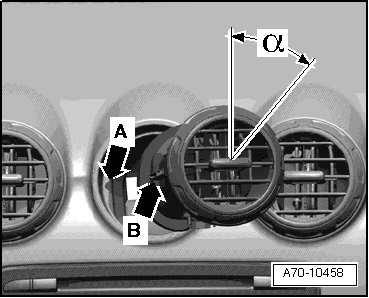

- When sliding instrument panel vent into instrument panel, ensure guide - arrow B - engages in opening - arrow A -.

- Press instrument panel vent into installation opening as far as stop.
