Removal and Replacement

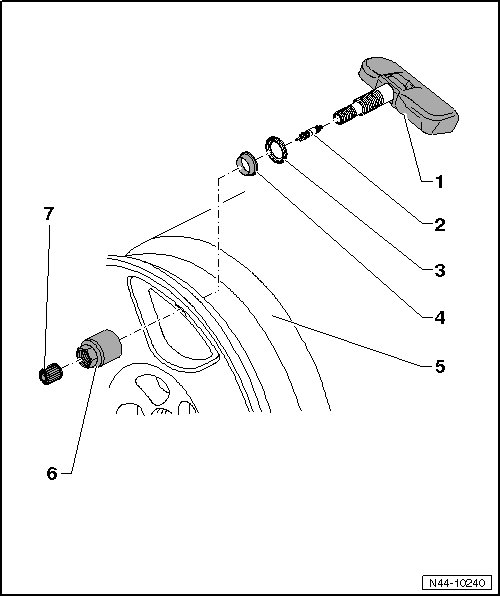

Tire Pressure Monitoring Sensor Assembly Overview






1 Left Front Tire Pressure Monitoring Sensor (G222) , Right Front (G223) , Left Rear (G224) and Right Rear (G225)

• Temperature and pressure can be read via diagnosis with vehicle diagnostic tester.

• Replace the valve insert each time a tire is changed, refer to the parts catalog.

• When using used tire pressure monitoring sensors , replace the union nut, valve insert, gasket, sealing washer and valve cap, refer to the parts catalog.

• Removing and Installing, refer to => [ Tire Pressure Sensor ] Service and Repair

2 Valve Core

3 Sealing Washer

4 Seal

5 Rim

• Tires, mounting and dismounting, refer to => [ Dismounting Tire ] Changing Tires With Tire Pressure Monitoring System and => [ Mounting Tire ] Changing Tires With Tire Pressure Monitoring System

6 Union Nut

• 8 Nm

7 Valve Cap

• Use only original valve caps from the repair set. Refer to the parts catalog.

• Do not use Comfort valve caps and metal caps
