Side Marker Lamp Bulb (M1)/(M3)

Side Marker Lamp Bulb (M1)/(M3)

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

• Headlamps must be adjusted after performing measures that could influence headlamp adjustment. Refer to => [ Headlamps Checking and Adjusting Conditions ] Headlamps Checking and Adjusting Conditions.

Removing






- Remove headlamp. Refer to => [ Headlamps ] Headlamps.

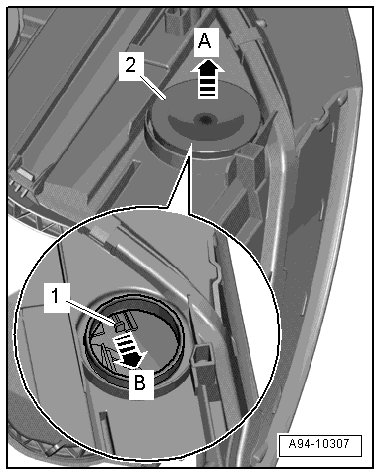

- Remove parking lamp housing cover - 2 - from headlamp housing - arrow A -.

- Pull the socket - 1 - with the bulb out of the reflector in - the direction of arrow B -.

- Remove parking lamp bulb from socket.

Installing

Install in reverse order of removal. Note the following:

- Insert the new bulb into the socket without touching the bulb with bare hands.

- Push socket into reflector until it engages noticeably.

- Close the housing lid.

- Install the headlamp. Refer to => [ Headlamps ] Headlamps.
