Selector Lever Transmission Range Position Display Unit (Y26) with Illumination (L101)

Selector Lever Transmission Range Position Display Unit (Y26) with Illumination (L101)

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

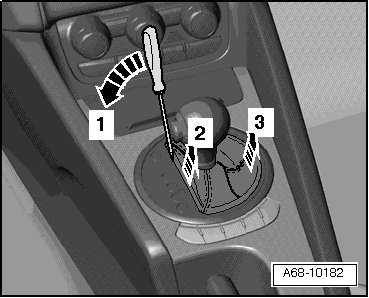

- Carefully pry selector lever boot out with a small screwdriver at the side - arrow 1 -.

- Pull selector lever boot up on both sides - arrows 2 and 3 -.

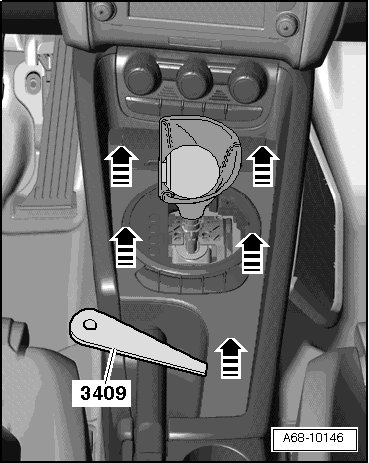

- Using (3409) , pry cover out of front center console - arrows -.






- Unplug connectors.

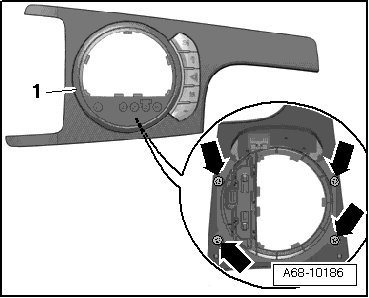

- Remove bolts - arrows - and remove decorative frame with selector lever position display - 1 -.






Installing

Install in reverse order.
