License Plate Lights (X4)/(X5), From 11.06

License Plate Lights (X4)/(X5), From 11.06

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- Turn light switch into "0" position.

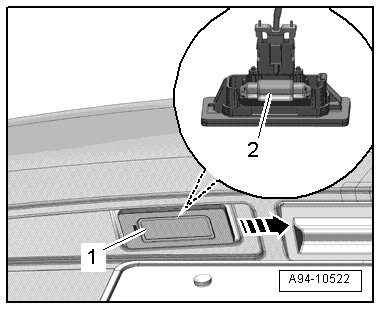

- Slide the bulb carrier - 1 - in the - direction of the arrow - and remove it from the luggage compartment lid.

- Remove the bulb - 1 - (12V, 5 W) out of clamp-type socket.

Installing

Install in reverse order.
