3.2L Gasoline BUB, CBRA Overviews

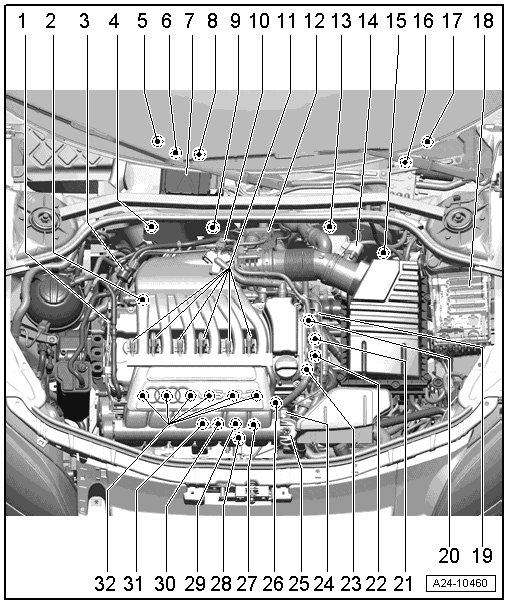

Component Locations: Engine Management System
3.2L gasoline BUB, CBRA Overviews
1 3-pin Harness Connector
• For Knock Sensor 1 -G61- => [ Knock Sensor (KS) 1 ] See Image Below.
2 Knock Sensor 1 -G61- => [ Knock Sensor (KS) 1 ] See Image Below.
3 Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 -N80-
4 Heated Oxygen Sensor (HO2S) -G39- Locations
5 Electrical Connectors
• For Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130-
• For Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G131-
6 Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- Locations
7 Engine Control Module (ECM) -J623-
8 Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G131- Locations
9 Heated Oxygen Sensor (HO2S) 2 -G108- Locations
10 Positive Crankcase Ventilation (PCV) Heating Element -N79-
11 Ignition Coils with Power Output Stages
• Ignition Coil 1 -N70-
• Ignition Coil 2 -N127-
• Ignition Coil 3 -N291-
• Ignition Coil 4 -N292-
• Ignition Coil 5 -N323-
• Ignition Coil 6 -N324-
12 Throttle Valve Control Module -J338-
13 Electrical Connectors
• For Heated Oxygen Sensor (HO2S) -G39-
• For Heated Oxygen Sensor (HO2S) 2 -G108-
14 Mass Air Flow (MAF) Sensor -G70-
15 Clutch Position Sensor -G476-
• For vehicles with manual transmission, installed on clutch master cylinder
Cont.
16 - Throttle Position (TP) Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185- => [ Accelerator Pedal Module ] Locations
17 - Instrument Cluster
18 - Engine compartment E-box
19 - Secondary air injection sensor 1 -G609- => [ Secondary Air Injection Sensor 1 -G609- - Engine Code CBRA ] See Image Below.
• For engine code CBRA only
20 - Camshaft Position (CMP) Sensor 2 -G163- => [ Camshaft Sensors ] See Image Below.
21 - Camshaft Adjustment Valve 1 (exhaust) -N318- => [ Camshaft Sensors ] See Image Below.
22 - Camshaft Adjustment Valve 1 -N205- => [ Camshaft Sensors ] See Image Below.
23 - Camshaft Position (CMP) Sensor -G40- => [ Camshaft Sensors ] See Image Below.
24 - Engine Coolant Temperature (ECT) Sensor -G62- => [ Engine Coolant Temperature (ECT) Sensor ] See Image Below.
25 - Vacuum Actuator for Intake Manifold Flaps
26 - Engine Speed (RPM) Sensor -G28- => [ Engine Speed (RPM) Sensor ] See Image Below.
27 - Intake Manifold Tuning (IMT) Valve -N156- => [ Intake Manifold Tuning (IMT) Valve ] See Image Below.
28 - Secondary Air Injection (AIR) Pump Motor -V101- => [ Secondary Air Injection Pump ] See Image Below.
29 - Secondary air injection solenoid valve -N112- and Secondary air injection solenoid valve 2 -N320- => [ Secondary Air Injection Solenoid Valves- Engine Code CBRA ] See Image Below.
• For engine code CBRA only
30 - Knock Sensor 2 -G66- => [ Knock Sensor (KS) 2 ] See Image Below.
31 - 3-pin Harness Connector
• For Engine Speed (RPM) Sensor -G28- => [ Engine Speed (RPM) Sensor ] See Image Below.
32 - Fuel Injector
• Cylinder 1 Fuel Injector -N30-
• Cylinder 2 Fuel Injector -N31-
• Cylinder 3 Fuel Injector -N32-
• Cylinder 4 Fuel Injector -N33-
• Cylinder 5 Fuel Injector -N83-
• Cylinder 6 Fuel Injector -N84-

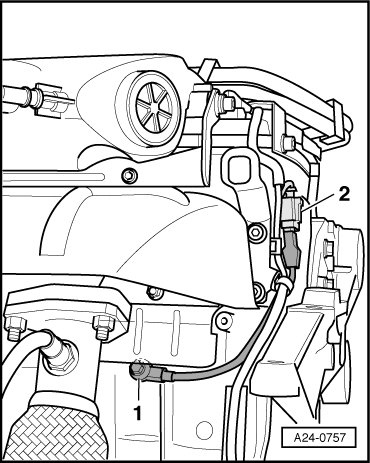

Engine Speed (RPM) Sensor
1 - 3-pin harness connector
2 - Engine Speed (RPM) Sensor -G28-

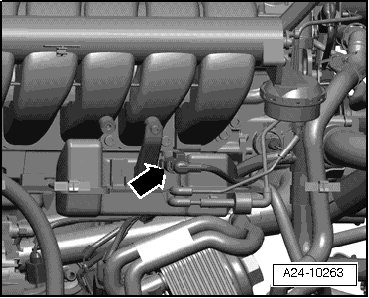

Intake Manifold Tuning (IMT)
Valve
-ARROW-Intake Manifold Tuning (IMT) Valve -N156-
On vacuum reservoir at front on engine

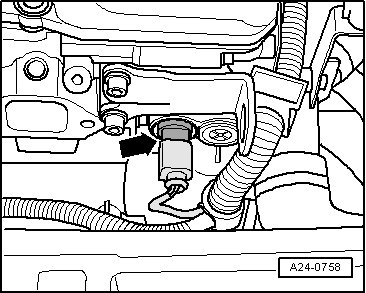

Engine Coolant Temperature (ECT)
Sensor
-ARROW-Engine Coolant Temperature (ECT) Sensor -G62-
At left front of cylinder head
Knock Sensor (KS) 1
1 - Knock Sensor 1 -G61-
2 - 3-pin harness connector

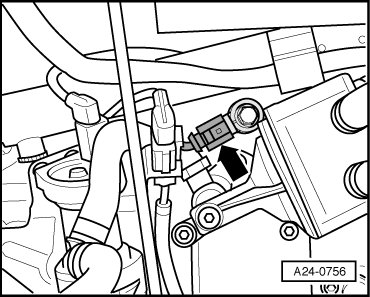

Knock Sensor (KS) 2
-ARROW-Knock Sensor 2 -G66-
Front at cylinder head

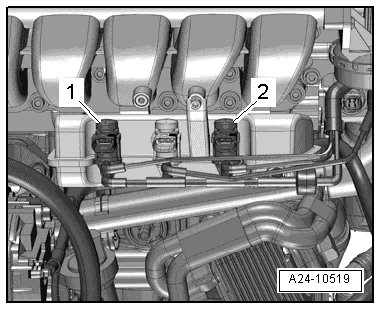

Camshaft Sensors
Left on cylinder head
1 - Camshaft Position (CMP) Sensor -G40-
2 - Camshaft Position (CMP) Sensor 2 -G163-
3 - Camshaft Adjustment Valve 1 -N205-
4 - Camshaft Adjustment Valve 1 (exhaust) -N318-

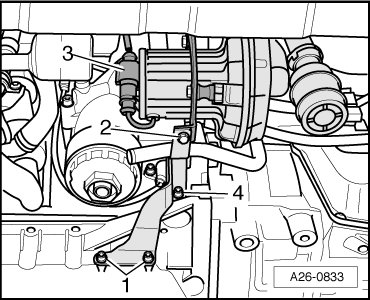

Secondary Air Injection Pump
3 - Connector at Secondary Air Injection (AIR) Pump Motor -V101-

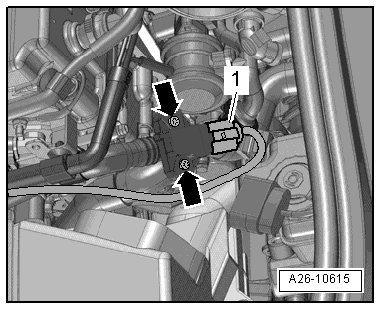

Secondary Air Injection Solenoid
Valves- Engine Code CBRA
On vacuum reservoir at front on engine
1 - Secondary Air Injection (AIR) Solenoid Valve -N112-
2 - Secondary Air Injection (AIR) Solenoid Valve 2 -N320-
Secondary Air Injection Sensor
1 -G609- - Engine Code CBRA
1 - Secondary air injection sensor 1 -G609-
Oil Level Thermal Sensor
1 - Oil Level Thermal Sensor -G266-

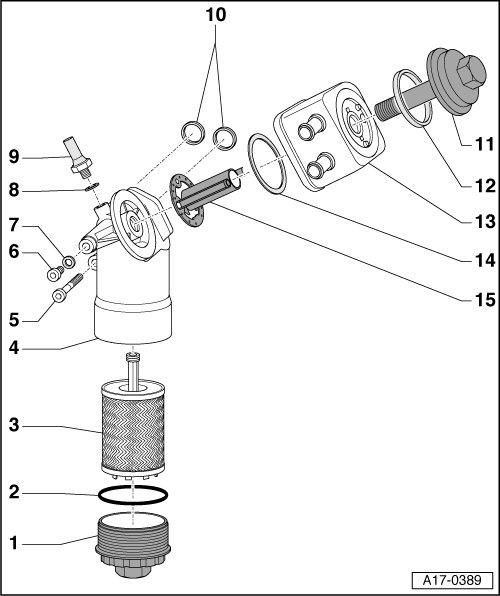

Oil Pressure Switch
9 - Oil Pressure Switch -F1- / -F22-
